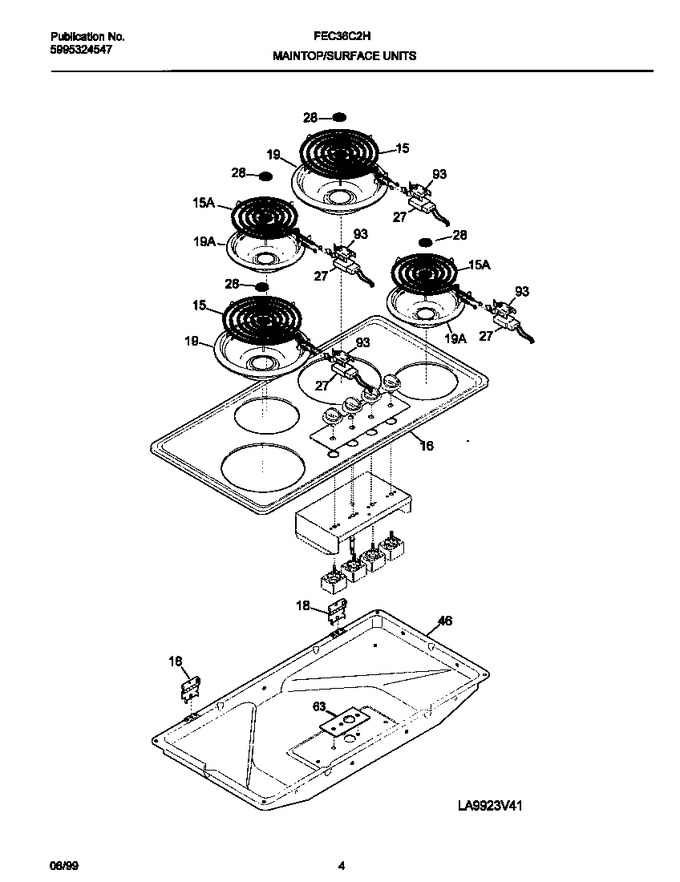

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303311320		Element-surface, 2100w		Appelez-nous	-
15	318372210		Element-surface, 1250w   (Replaces: 5303015716)			Immediately	$ 20.21
16	318159041		Main Top, White		Appelez-nous	-
18	318074310		Hinge Main Top				$ 51.98
19	316048414		Pan-surface Element,small   (Replaces: 318067021)			Immediately	$ 16.11
19	316048413		Pan-surface Element,large   (Replaces: 318067020)			Immediately	$ 9.85
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303309002		Medallion, Surface Element		Appelez-nous	-
46	318077121		Box-burner		Appelez-nous	-
63	5303291326		Plate-grounding		Appelez-nous	-
93	5303935058		Bracket-terminal Block   (Replaces: 5303304731)			Immediately	$ 13.81
*25843	5303300195		Screw,10-32 X 3/8		Appelez-nous	-
*25844	5303311532		Screw		Appelez-nous	-
*25845	5303323140		Screw,ground 10-32 X 3/8``		Appelez-nous	-
*25846	5303324001		Spacer		Appelez-nous	-
*25847	5303311321		Box And Wires Assembly		Appelez-nous	-
*25848	5303311532		Screw,6-32 X 1/4		Appelez-nous	-
*25849	5304403070		Screw, 6-32 X 5/16		Appelez-nous	-
*25850	5303288566		Screw,6-32 X 5/16   (Replaces: 5303324512)				$ 2.12
