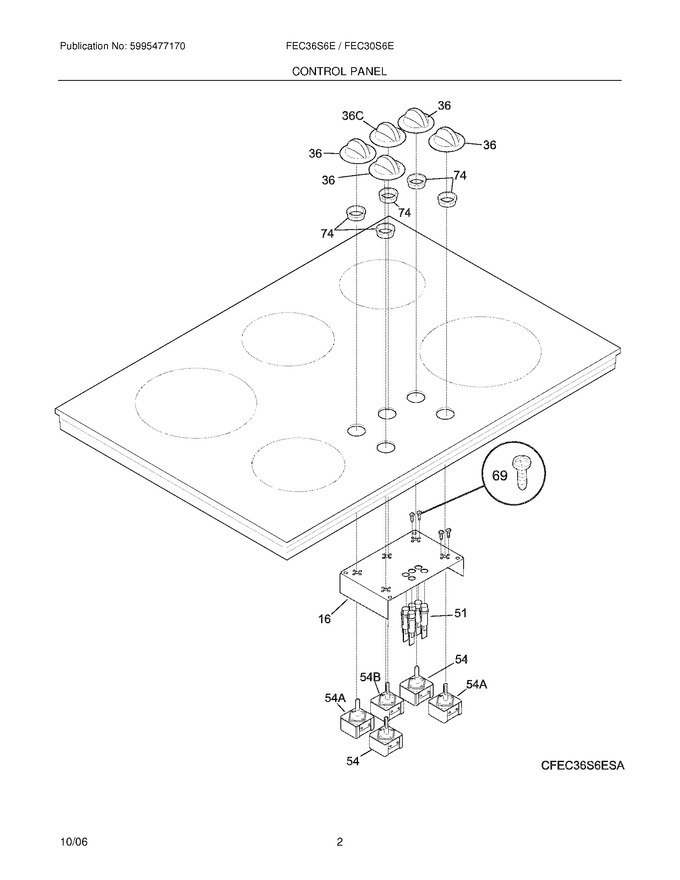

03 - Control Panel
05 - Main Top/surface Units
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318096332 | Box,instrument Mtg |
|
- | |||||
| 36 | 318196634 | Knob,control ,black |
|
$ 64.50 | |||||
| 69 | 5303288565 | Screw,8-32 X 0.188 (Replaces: 5303323134) |
|
$ 3.12 | |||||
| 74 | 318148900 | Bushing,switch |
|
$ 54.92 | |||||
| 36C | 318196637 | Knob,warmer ,black |
|
- | |||||
| F51 | 318044823 | Light,indicator ,125v ,(6) |
|
- | |||||
| F54 | 318293824 | Switch,surface Unit ,small ,single (Replaces: 318369609) |
|
Immediately | $ 97.07 | ||||
| F54A | 318293825 | Switch,surface Unit ,large ,single (Replaces: 318369610) |
|
Immediately | $ 99.10 | ||||
| F54B | 318078801 | Switch,element ,6`` ,warmer |
|
$ 174.30 | |||||
| NI | 5303323140 | Screw,ground ,10-32 X 0.375 |
|
- | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,(2) |
|
$ 15.17 |
