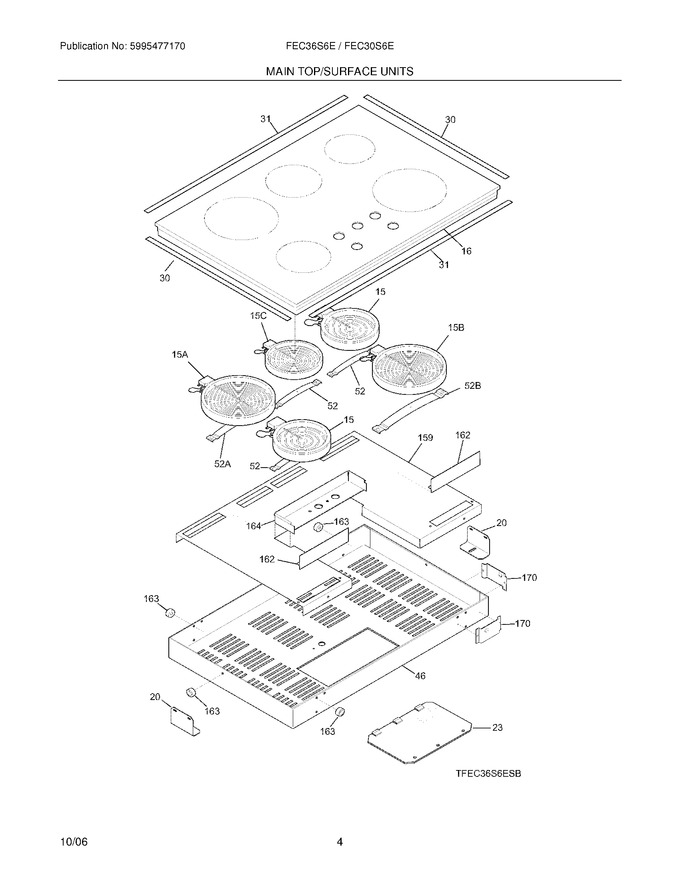

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
16	318079426		Main Top,black		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	5303297401		Panel,service		Appelez-nous	-
30	318052604		Gasket,glass ,20.25`` ,side ,(2)		Appelez-nous	-
31	318052606		Gasket,glass ,30.25`` ,front/back ,(2)				$ 27.83
46	318077227		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
159	318125122		Deflector		Appelez-nous	-
162	318125211		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
164	318125302		Plate,connection		Appelez-nous	-
170	318124910		Screen,thermal ,(4)		Appelez-nous	-
52A	318122007		Spring,element Mtg ,large				$ 53.45
52B	318122010		Spring,element Mtg ,3000w				$ 62.51
F15A	318198834		Element,surface ,large/8`` ,2200 W				$ 205.36
F15B	316135401		Element,surface ,9`` ,2500 W   (Replaces: 318198835)			Immediately	$ 80.96
F15C	318198843		Element,surface ,warmer ,100 W				$ 206.01
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318078559		Box & Wires Assy		Appelez-nous	-
NI	318199464		Harness,wiring		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
