SELECT A DIAGRAM
01 - Cover

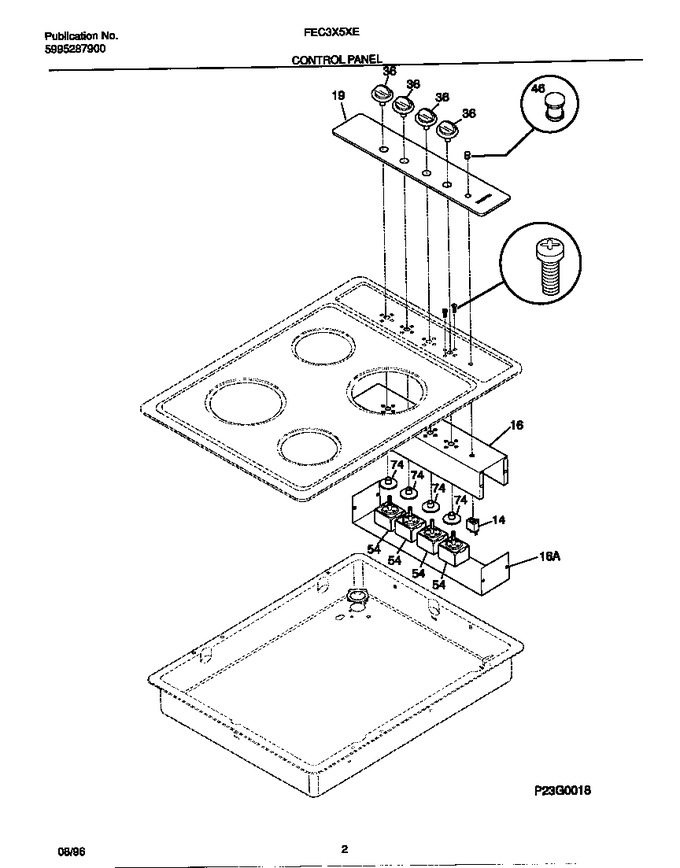

02 - Control Panel
03 - Main Top/surface Units
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 3200297 | Light-lamp/indicator |
|
- | |||||
| 16 | 5303301458 | Cover,instrument Mtg. |
|
- | |||||
| 16 | 5303301457 | Plate, Instrument Mtg |
|
$ 5.99 | |||||
| 19 | 318021602 | Panel-control |
|
- | |||||
| 36 | 318016308 | Knob-surface Unit, Black, (3) |
|
- | |||||
| 46 | 318228310 | Lens-light/lamp, Indicator (Replaces: 5303299764) |
|
Immediately | $ 22.91 | ||||
| 54 | 5303935086 | Switch-surface Unit, (4) (Replaces: 318120504) |
|
Immediately | $ 51.95 | ||||
| 74 | 08007822 | Bushing, Switch |
|
- | |||||
| *32440 | 5303323137 | Screw, Switch Mtg, (6) (Replaces: 5303305528) |
|
$ 11.88 | |||||
| *32441 | 3051038 | Nut |
|
- |
