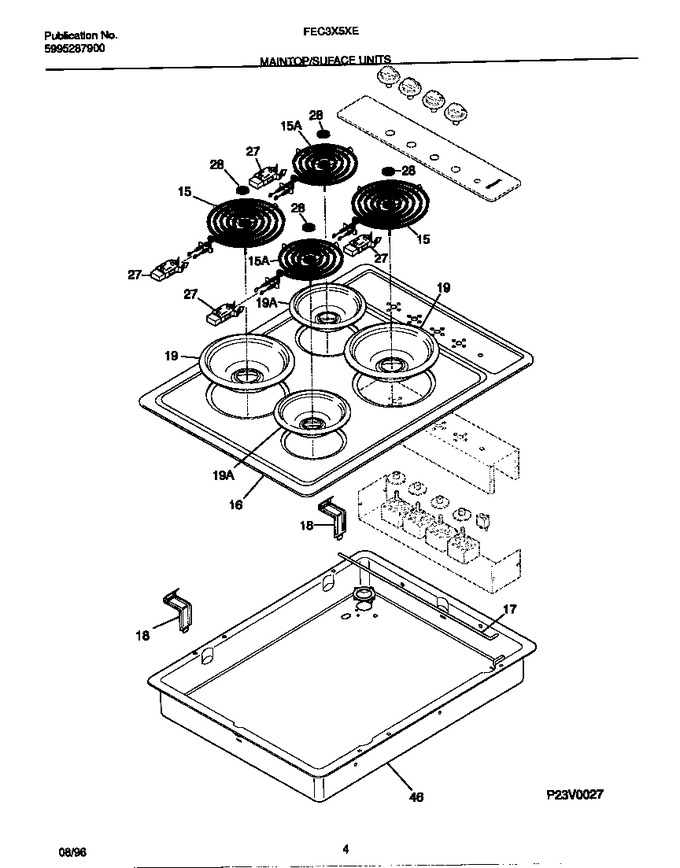

03 - Main Top/surface Units


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303301460		Element-surface, Large		Appelez-nous	-
15	5303301459		Element-surface, Small		Appelez-nous	-
16	318121100		Main Top, Black		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	5303311269		Hinge-main Top, (2)		Appelez-nous	-
19	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303013588)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	3016816		Burner Box		Appelez-nous	-
*32442	5301506869		Clamp-cable		Appelez-nous	-
*32443	5303300195		Screw, Terminal Block		Appelez-nous	-
*32444	5303308449		Fastener		Appelez-nous	-
