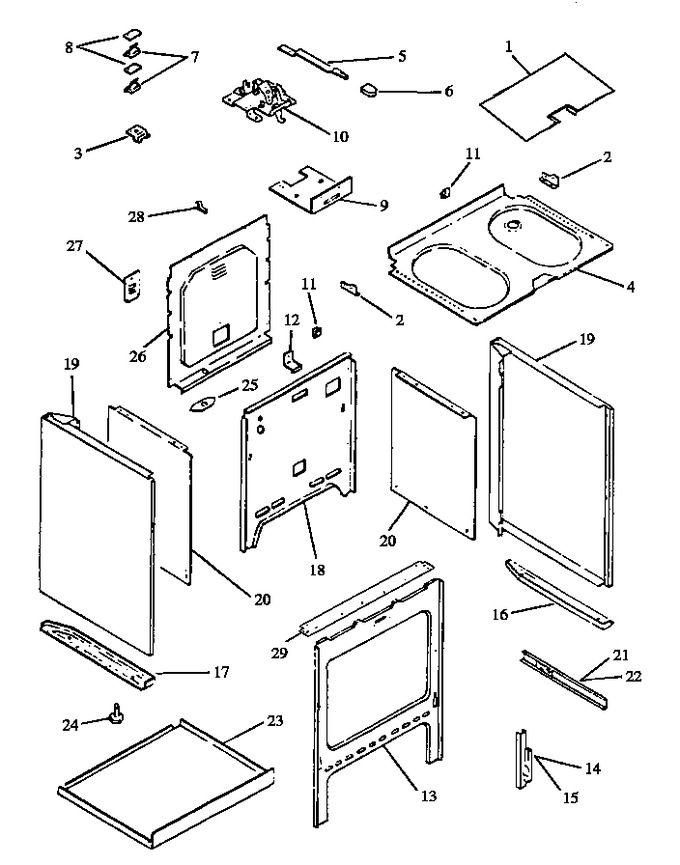

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0309103		Retainer, Top Insulation		Appelez-nous	-
2	Y0066374		Hinge, Lower, Main Top		Appelez-nous	-
3	Y0068091		Bracket, Switch Mounting		Appelez-nous	-
4	309054CG		Baffle, Drip		Appelez-nous	-
5	303040B		Handle, Door Latch (blk)		Appelez-nous	-
6	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
7	Y0308816		Switch, Latch		Appelez-nous	-
8	Y0091523		Insulation, Esm		Appelez-nous	-
9	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
10	Y0300327		Latch, Oven Door		Appelez-nous	-
11	Y0091587		Cable, Clip Esm		Appelez-nous	-
12	0061384		Bracket, Switch Mtg.		Appelez-nous	-
13	Y00000000		See Note See Note Front Frame -- (not Field Replacable)		Appelez-nous	-
14	Y0067795		Kit, Door Hinge(rh-ss)		Appelez-nous	-
15	Y0066953		Kit, Door Hinge(lh-hs)		Appelez-nous	-
16	Y0306119		Brace, Leveling Leg (lt)		Appelez-nous	-
17	Y0306118		Assy Leg Brace/level Lh		Appelez-nous	-
18	Y0309125		Retaner, Rear Insulation		Appelez-nous	-
19	306081B		Panel, Side (blk)		Appelez-nous	-
20	0304282		Retainer, Insulation (side)		Appelez-nous	-
21	0306403		Track, Storage Dwr Rh		Appelez-nous	-
22	Y0306402		Track, Storage Dwr Lh		Appelez-nous	-
23	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
24	Y0307594		Leg, Leveling		Appelez-nous	-
25	0058311		Plate, Main Inlet Wire		Appelez-nous	-
26	Y0307342		Cover, Rear		Appelez-nous	-
27	Y0058435		Access Plate, Rear		Appelez-nous	-
28	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
29	Y0303965		Filler Front Frame		Appelez-nous	-
NI	Y0301028		Bracket		Appelez-nous	-
NI	Y0309721		Shield, Clock Heat		Appelez-nous	-
NI	Y0063706		Shield, Heat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
