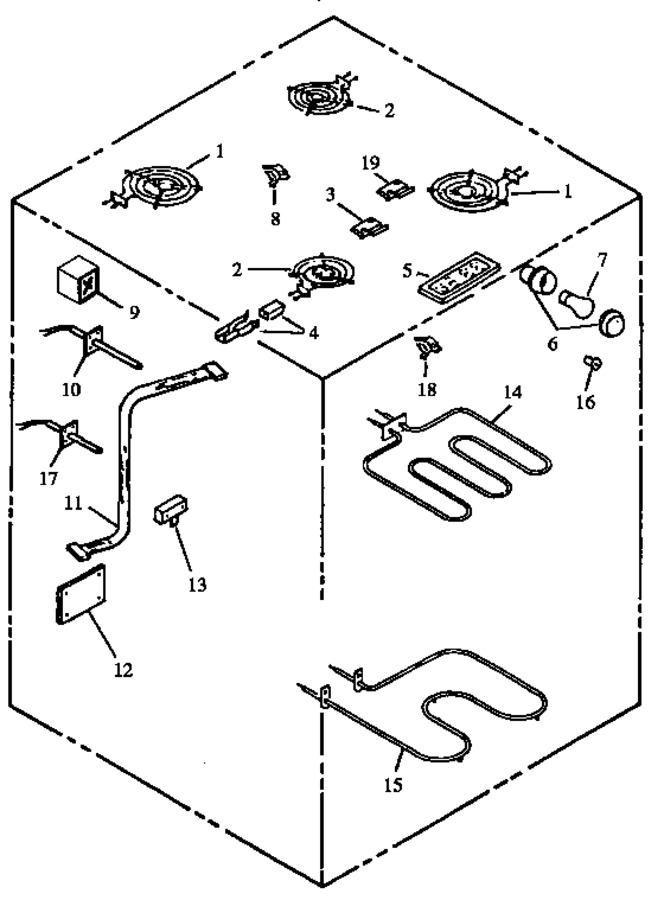

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10259865 | Element, 5 Turn 2600w 8`` (Replaces: Y0304871) |
|
Immediately | $ 105.92 | ||||
| 2 | WPW10259868 | Element, 4 Turn 1500w 6`` (Replaces: Y0051576) |
|
Immediately | $ 112.28 | ||||
| 3 | Y0065780 | Switch, Clean Circuit |
|
$ 11.77 | |||||
| 4 | 330031 | Kit, Top Element Term Block (Replaces: Y0089336) |
|
Immediately | $ 14.48 | ||||
| 5 | 0309473 | Control,electronic Range |
|
- | |||||
| 6 | WP74011278 | Assy, Oven Light (Replaces: 74011278) |
|
$ 101.56 | |||||
| 7 | Y0042175 | Bulb, Light |
|
- | |||||
| 8 | Y0308416 | Switch, Limit Cont. |
|
- | |||||
| 9 | Y0309649 | Fan Assy, Cooling (w/blade) |
|
- | |||||
| 10 | Y0300769 | Sensor, Erc |
|
- | |||||
| 11 | 0309647 | Harness, Epc/p.c. Board |
|
- | |||||
| 12 | 0309475 | Circuit Board, Erc |
|
- | |||||
| 13 | WP8203546 | Terminal Block (Replaces: Y0306378) |
|
Immediately | $ 27.12 | ||||
| 14 | WPY0061732 | Element, Broil (240v-3000w) (Replaces: Y0061732) |
|
$ 158.37 | |||||
| 15 | WP77001094 | Element, Bake (Replaces: Y0059522) |
|
Immediately | $ 39.58 | ||||
| 16 | Y0091363 | Switch, Oven Light |
|
- | |||||
| 17 | Y0308800 | Control, Limit (805deg) |
|
- | |||||
| 18 | Y0308714 | Harness, Wire (erc/pc Board) |
|
- | |||||
| 19 | Y0308816 | Switch, Latch |
|
- | |||||
| NI | Y0308896 | Cord, Power |
|
- | |||||
| NI | Y0307930 | Clip, Element Retainer |
|
- | |||||
| NI | Y0300662 | Support |
|
- | |||||
| NI | WPW10245259 | Strap, Ground (Replaces: Y0306379) |
|
Immediately | $ 31.65 | ||||
| NI | 0306381 | Hex Nut No.10-32 Nickel |
|
- |
