SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Control Panel


04 - Main Top


05 - Miscellaeous Information


06 - Oven Door


07 - Page 6


08 - Page 8

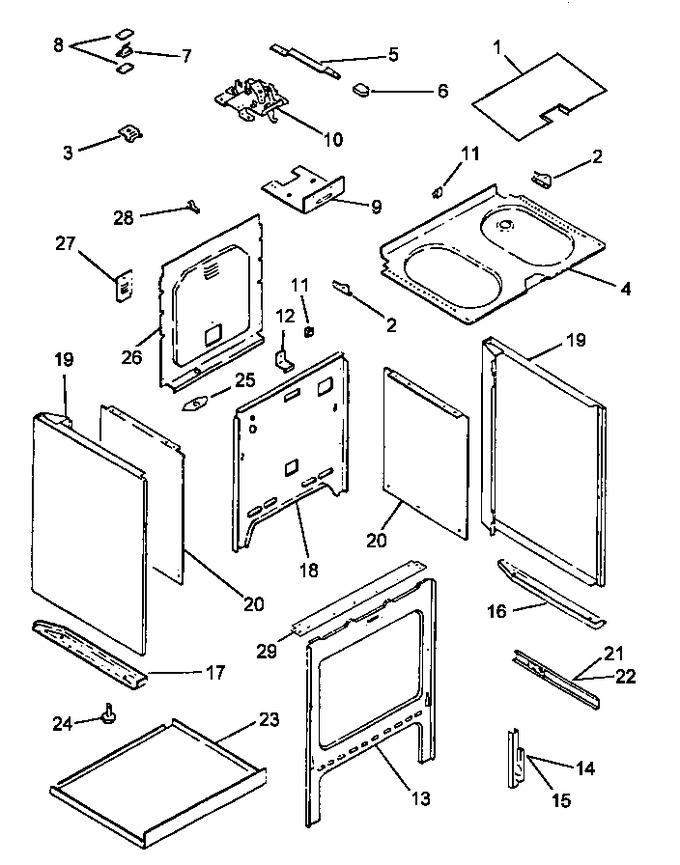

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0309773		Retainer, Top Insulation		Appelez-nous	-
2	Y066374F		Hinge, Lower Main Top, R.h. An		Appelez-nous	-
3	Y0068091		Bracket, Switch Mounting		Appelez-nous	-
4	309054CG		Baffle, Drip		Appelez-nous	-
5	303040B		Handle, Door Latch (blk)		Appelez-nous	-
6	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
7	Y0065780		Switch, Clean Circuit				$ 11.77
7	Y0308816		Switch, Latch		Appelez-nous	-
8	Y0091523		Insulation, Esm		Appelez-nous	-
9	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
10	0314960		Latch, Elect. Si		Appelez-nous	-
11	Y0091587		Cable, Clip Esm		Appelez-nous	-
12	0061384		Bracket, Switch Mtg.		Appelez-nous	-
13	Y00000000		See Note See Note Front Frame -- (not Field Replacable)		Appelez-nous	-
14	Y0314573		Kit, Door Hinge(rh-ss)		Appelez-nous	-
15	Y0314572		Kit, Door Hinge(lh-hs)		Appelez-nous	-
16	314885B		Brace, Leveling Leg (rt)		Appelez-nous	-
17	314884B		Brace, Leveling Leg (lt)		Appelez-nous	-
18	0309081		Retainer, Rear Insul.		Appelez-nous	-
19	306081B		Panel, Side (blk)		Appelez-nous	-
20	0304282		Retainer, Insulation (side)		Appelez-nous	-
21	0314663		Track, Storage Dwr Rh		Appelez-nous	-
22	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
23	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
24	314187B		Leg,leveling Xxx		Appelez-nous	-
25	0058311		Plate, Main Inlet Wire		Appelez-nous	-
26	Y0307342		Cover, Rear		Appelez-nous	-
27	Y0058435		Access Plate, Rear		Appelez-nous	-
28	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
29	Y0315148		Filler, Front Frame		Appelez-nous	-
NI	Y0315146		Shield, Heat		Appelez-nous	-
NI	Y0041813		Screw Cabinet Trim		Appelez-nous	-
NI	Y0301555		Anchor, Plastic		Appelez-nous	-
NI	Y0309721		Shield, Clock Heat		Appelez-nous	-
NI	Y0301028		Bracket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
