SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Control Panel


04 - Main Top


05 - Miscellaeous Information


06 - Oven Door


07 - Page 6


08 - Page 8

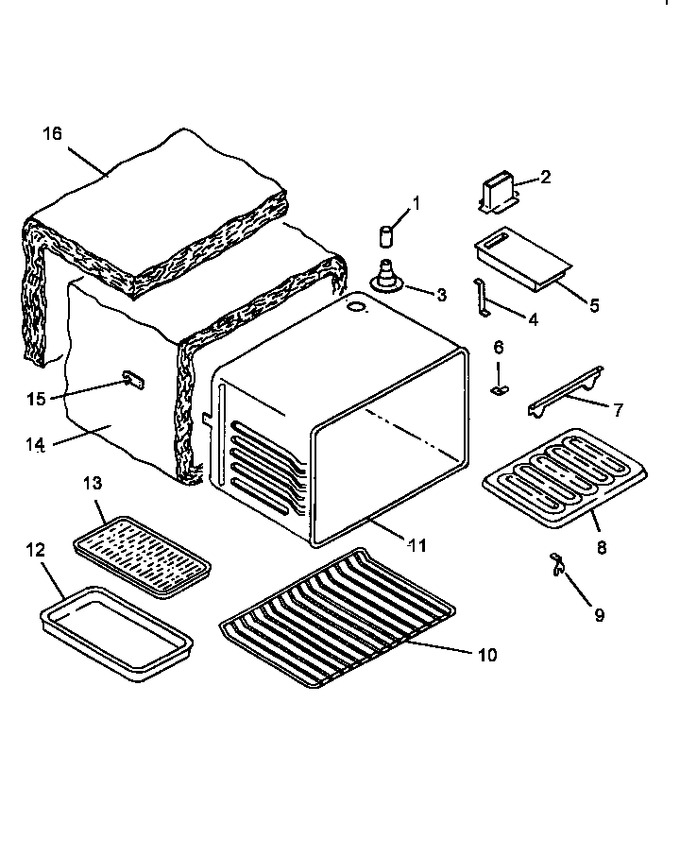

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0060633		Tube, Vent Extension		Appelez-nous	-
2	Y0059431		Flue Box, Rear		Appelez-nous	-
3	Y0058526		Smoke Eliminator		Appelez-nous	-
4	Y0060312		Bracket, Support		Appelez-nous	-
5	Y0060627		Flue Box		Appelez-nous	-
6	Y0315022		Cover, Chip		Appelez-nous	-
7	Y0061557		Bracket, Reflector Mounting		Appelez-nous	-
8	Y0308294		Reflector, Broil Element		Appelez-nous	-
9	0061556		Bracket, Mounting		Appelez-nous	-
10	WP314763J		Rack,oven 22 27/32`` X 15 7/16``   (Replaces: 314763J)				$ 70.11
11	308746CG		Shell, Oven		Appelez-nous	-
12	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
13	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
14	0300973		Insulation, Wrapper		Appelez-nous	-
15	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
16	Y0300974		Insulation, Rear		Appelez-nous	-
NI	Y0097822		Rivet, Pop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
