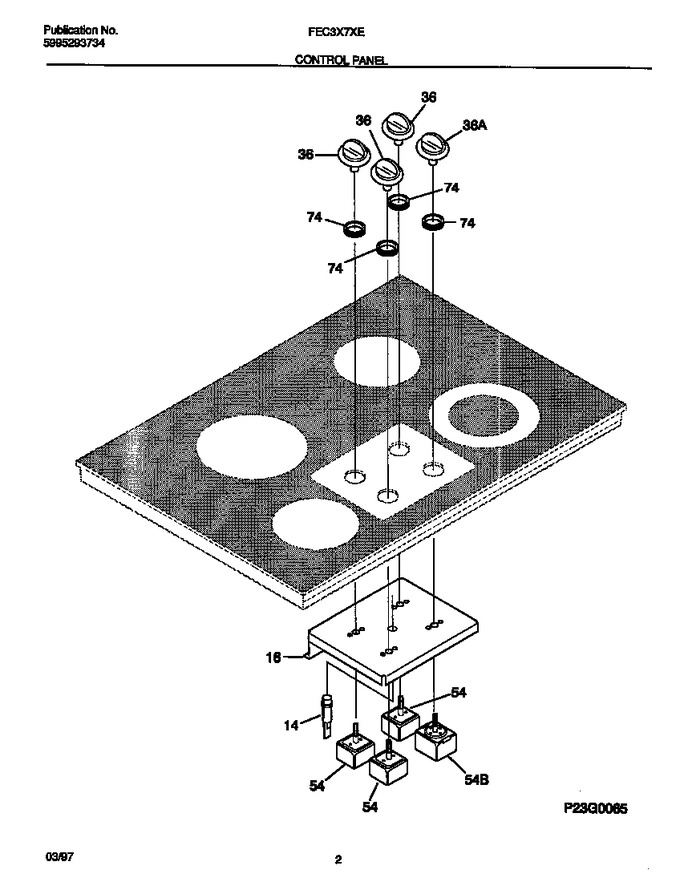

02 - Control Panel


03 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303297484		Light-indicator, Hot Surface, (4)		Appelez-nous	-
16	318096310		Box, Instrument Mtg		Appelez-nous	-
36	318016301		Knob-surface Unit, White, (1)		Appelez-nous	-
36	318016300		Knob-surface Unit, White, (3)		Appelez-nous	-
74	5303321205		Bushing, (4)		Appelez-nous	-
*13080	5303300265		Screw, 8-18 X 1/2				$ 15.17
*13081	5303322267		Bracket-mounting, Kit		Appelez-nous	-
54A	318120505		Switch-surface Unit, Small/large, (3)				$ 91.35
54A	318078200		Switch-surface Unit, Dual/1800w, (1)		Appelez-nous	-
54B	5303288565		Screw, Switch Mtg., 8-32 X 3/16, (6) (not Illustrated)   (Replaces: 5303323134)				$ 3.12
54B	5303323137		Screw, Switch Mtg, (2) (not Illustrated)   (Replaces: 5303305528)				$ 11.88
