SELECT A DIAGRAM

01 - Cover


02 - Control Panel

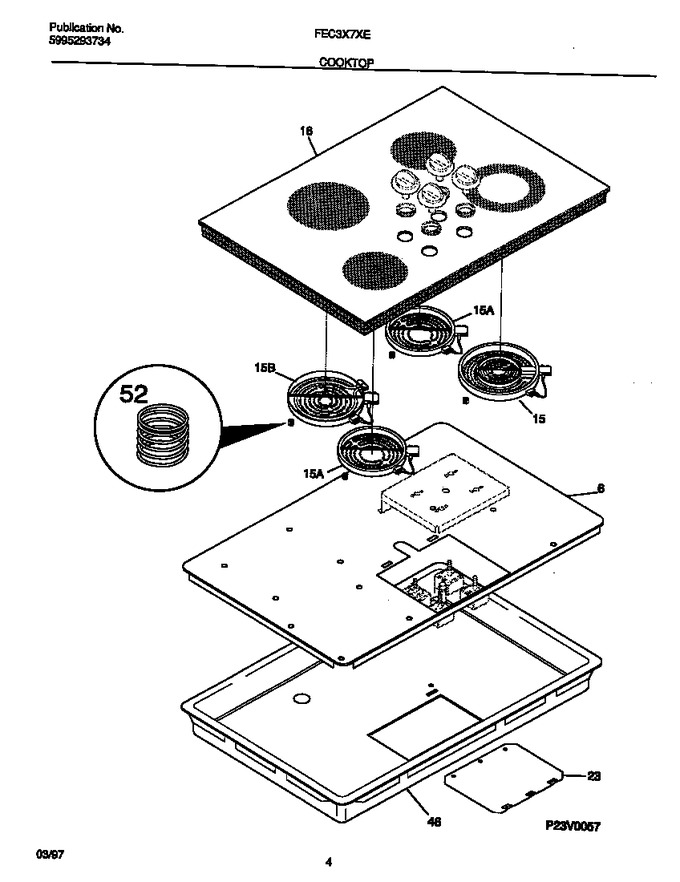

03 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318080211		Plate-cooktop		Appelez-nous	-
15	318198834		Element-surface, 2100w, Large/8 Inch, Limit Sw Incl   (Replaces: 316010204)				$ 205.36
15	318050200		Element-surface, Dual Radiant, 1000w/2000w, (1), Limit S		Appelez-nous	-
15	318198817		Element-surface, Radiant, Small/6 Inch, 1200w, (2), Limi   (Replaces: 316010203)			Immediately	$ 192.78
16	318079311		Main Top,white				$ 812.60
23	5303297401		Panel-access		Appelez-nous	-
46	318077211		Burner Box		Appelez-nous	-
*13082	318125300		Plate-connection		Appelez-nous	-
*13083	08007817		Spacer, (2)		Appelez-nous	-
*13084	318125110		Deflector		Appelez-nous	-
*13085	318125200		Screen-thermal		Appelez-nous	-
*13086	5303323364		Box & Wires Assy		Appelez-nous	-
52A	318122000		Spring-element Mtg, 1200w & 1800w		Appelez-nous	-
52B	318122003		Spring-element Mtg, 2200w		Appelez-nous	-
