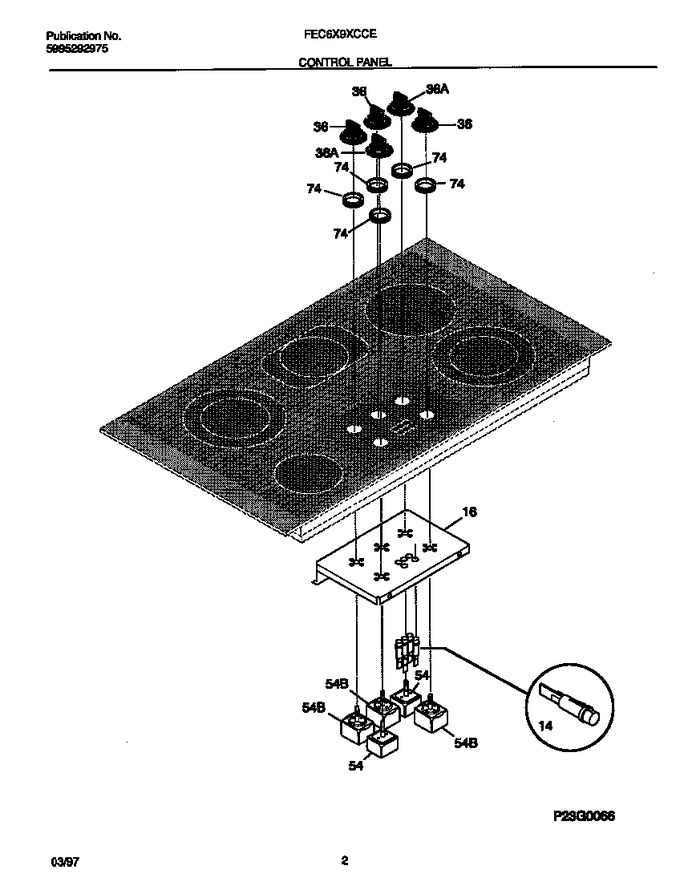

02 - Control Panel


03 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303297484		Light-indicator, (5)		Appelez-nous	-
16	5303305104		Plate, Instrument Mtg		Appelez-nous	-
36	318099201		Knob-control, (3)		Appelez-nous	-
36	318099202		Knob-control, (2)				$ 156.24
54	5303323137		Screw, Switch Mtg, (6) (not Illustrated)   (Replaces: 5303305528)				$ 11.88
54	318078200		Switch-surface Unit, Dual/1800w, (3)		Appelez-nous	-
54	5303288565		Screw, Switch Mtg., 8-32 X 3/16, (4) (not Illustrated)   (Replaces: 5303323134)				$ 3.12
54	318120505		Switch-surface Unit, Small/large, (2)				$ 91.35
74	5301316432		Bushing, Switch		Appelez-nous	-
*79600	3051038		Nut		Appelez-nous	-
*79601	5303300265		Screw, 8-18 X 1/2				$ 15.17
