SELECT A DIAGRAM

01 - Cover


02 - Control Panel

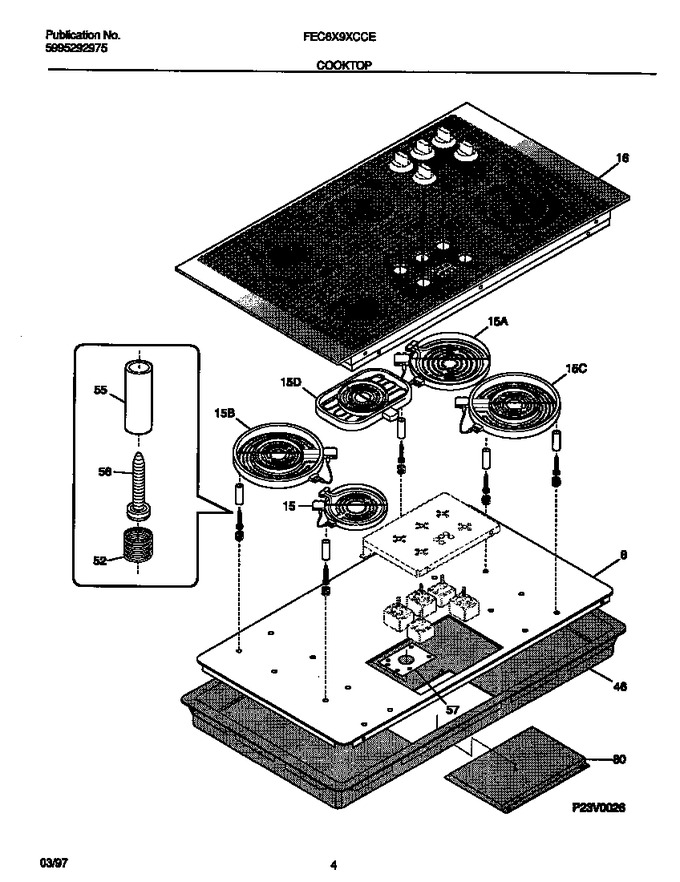

03 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303305103		Support-element		Appelez-nous	-
15	318050201		Element-surface, Dual, 1000w/1900w, Limit Sw Incl		Appelez-nous	-
15	5303320234		Element-surface, Halogen, Large/8 Inch, Limit Sw Incl		Appelez-nous	-
15	318050200		Element-surface, Dual Radiant, 1000w/2000w, Limit Sw Inc		Appelez-nous	-
15	5303297142		Element-surface, Halogen, Small/6 Inch, Limit Sw Incl		Appelez-nous	-
15	318050300		Element-surface, 1800w, Limit Sw Incl		Appelez-nous	-
16	318079800		Main Top Assy, Glass/steel, Enamel, Black, Frame Incl.		Appelez-nous	-
16	318110900		Channel-top Stiffener (not Illustrated)		Appelez-nous	-
46	5303305105		Burner Box		Appelez-nous	-
52	5303297478		Spring-element Mtg		Appelez-nous	-
55	5303316771		Spacer-element		Appelez-nous	-
56	5303297477		Screw-element				$ 15.17
57	08014750		Plate-connection		Appelez-nous	-
80	318100000		Panel-access		Appelez-nous	-
80	5303300195		Screw, 10-32 X 3/8, Terminal Block, (2) (not Illustrated		Appelez-nous	-
*79602	318078509		Box & Wires Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
