SELECT A DIAGRAM

01 - Cover

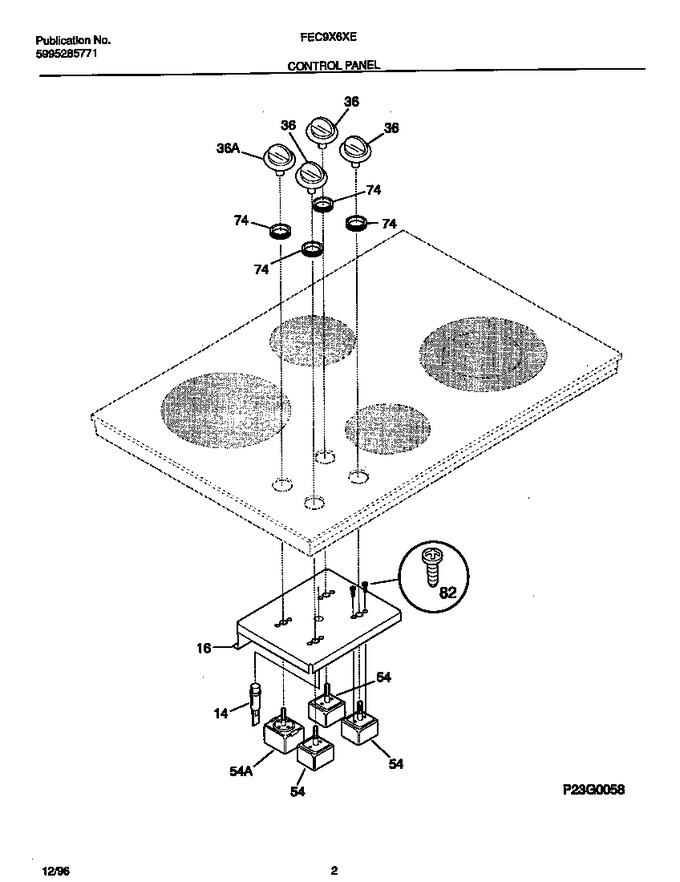

02 - Control Panel


03 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303297484		Light-indicator		Appelez-nous	-
16	318096300		Plate, Instrument Mtg		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black		Appelez-nous	-
36	5303310867		Knob-surface Unit		Appelez-nous	-
54	318120505		Switch-surface Unit, (2)				$ 91.35
74	5301316432		Bushing, Switch		Appelez-nous	-
82	5303323137		Screw, Switch Mtg, (6)   (Replaces: 5303305528)				$ 11.88
*27160	5303300265		Screw, 8-18 X 1/2				$ 15.17
54A	318078200		Switch-surface Unit (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
