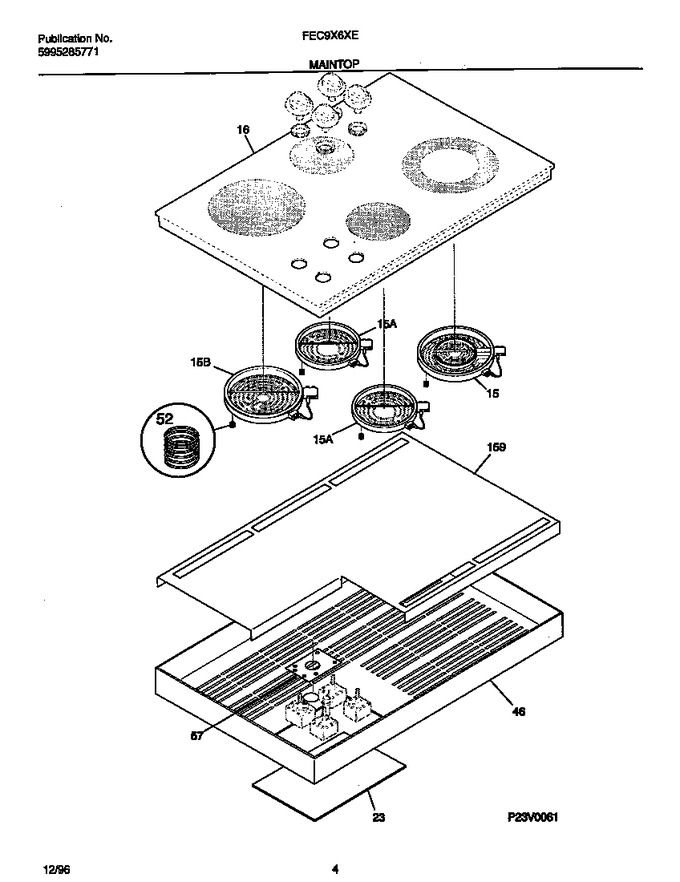

03 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318050200		Element-surface, 2000/1000 W		Appelez-nous	-
15	318050101		Element-surface, 2100w		Appelez-nous	-
15	318198817		Element-surface, 1200 W   (Replaces: 318050100)			Immediately	$ 192.78
16	318079300		Main Top, Black		Appelez-nous	-
23	5303320672		Panel-access/service		Appelez-nous	-
46	318077201		Burner Box		Appelez-nous	-
57	318125300		Plate-mounting		Appelez-nous	-
159	318125100		Deflector		Appelez-nous	-
*27161	5303314077		Cleaner-cooktop		Appelez-nous	-
*27162	08007817		Spacer, (2)		Appelez-nous	-
52A	318122000		Spring-element Mtg, 1200w		Appelez-nous	-
52B	318122003		Spring-element Mtg, 2100w/dual		Appelez-nous	-
