SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

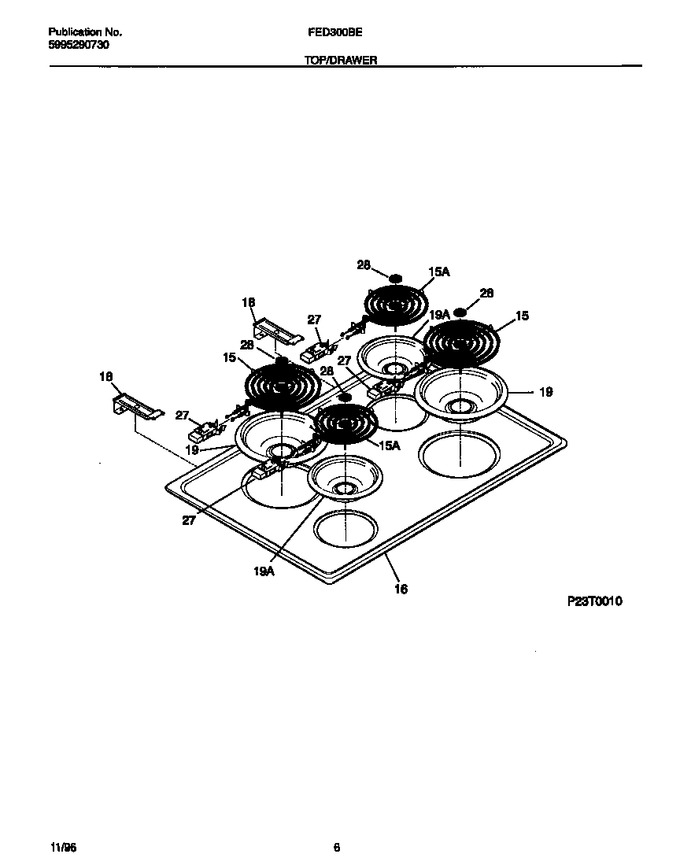

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303301459		Element-surface, Small		Appelez-nous	-
15	5303301460		Element-surface, Large		Appelez-nous	-
16	5303051802		Main Top, Chrome		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303013588)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
28	5303301461		Medallion, Surface Element		Appelez-nous	-
*89969	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*89970	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive			Immediately	$ 9.36
*89971	5303300414		Spacer, Cork & Rubber				$ 13.18
*89972	5303310504		Spacer-handle, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
