SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer

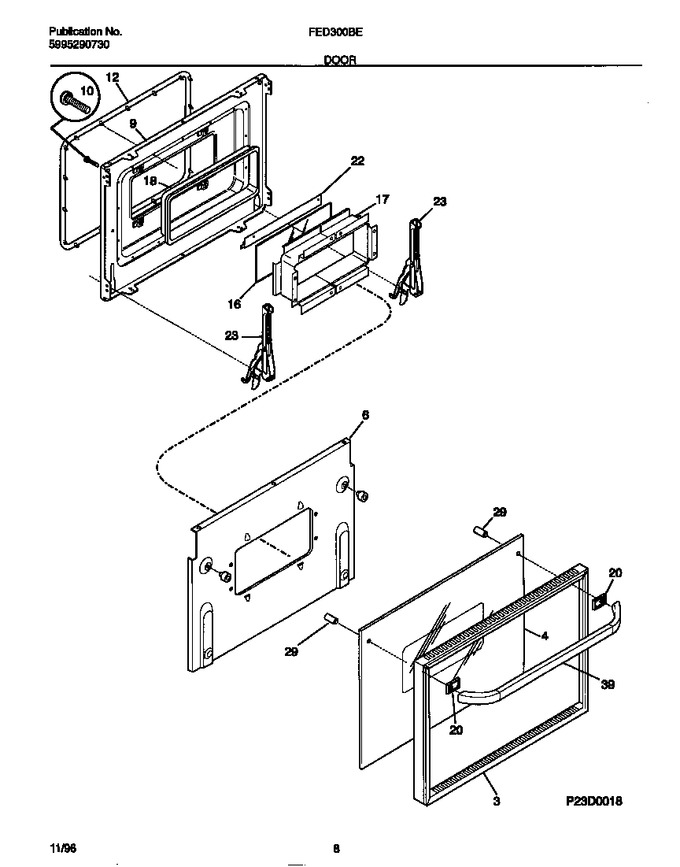

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303311179		Trim-oven Door, Black		Appelez-nous	-
4	5303311180		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303311149		Shield-wool		Appelez-nous	-
9	318112907		Liner-oven Door		Appelez-nous	-
10	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
12	5303311134		Seal-oven Door		Appelez-nous	-
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	318139000		Spacer-glass		Appelez-nous	-
18	5303310505		Seal-rope		Appelez-nous	-
20	318014300		Spacer-handle, Black, (2)				$ 36.44
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303320452		Hinge		Appelez-nous	-
29	5303310535		Spacer-door		Appelez-nous	-
39	316091118		Handle-door, Black, Oven		Appelez-nous	-
39	318014009		Trim-handle, Black (not Illustrated)		Appelez-nous	-
*89973	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*89974	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*89975	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06

    View Diagram in Separate Window       Print Part List
