SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

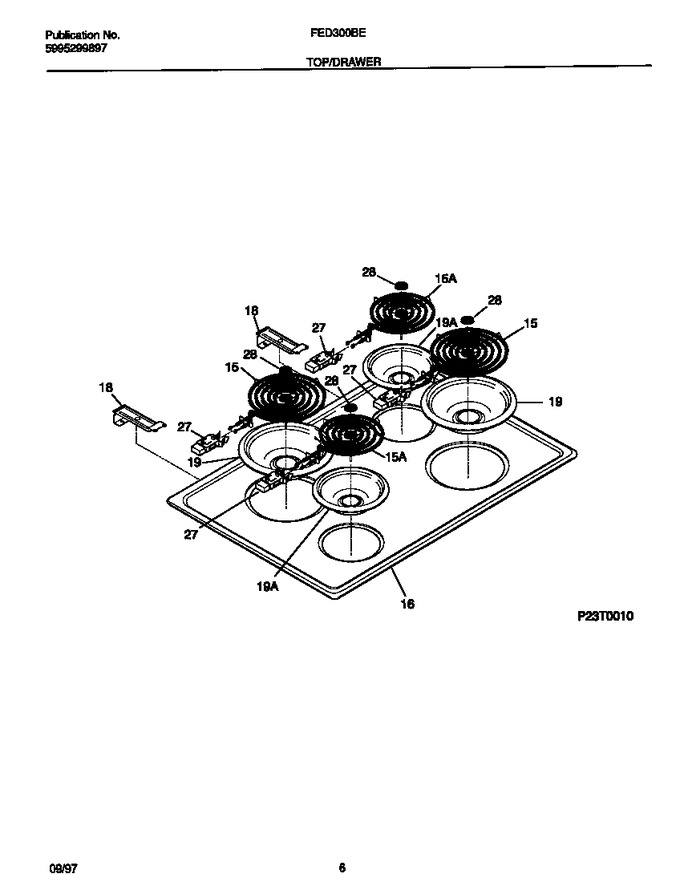

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	316439802		Element-surface, Small/6 Inch, (2)   (Replaces: 5303299749)			Immediately	$ 192.78
15	5308011964		Element,surface ,large/8 Inch ,(2) ,medallion Incl				$ 209.08
16	5303051802		Main Top, Chrome		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
19	316048413		Pan-surface Element, Large/8 Inch, (2)   (Replaces: 318067010)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
27	318122500		Support, Terminal Block, (4) (not Illustrated)		Appelez-nous	-
28	5303301461		Medallion, Surface Element		Appelez-nous	-
*59492	3051554		Rod-maintop Support		Appelez-nous	-
*59493	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*59494	5303300414		Spacer, Cork & Rubber				$ 13.18
*59495	5303325174		Cap-screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
