SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

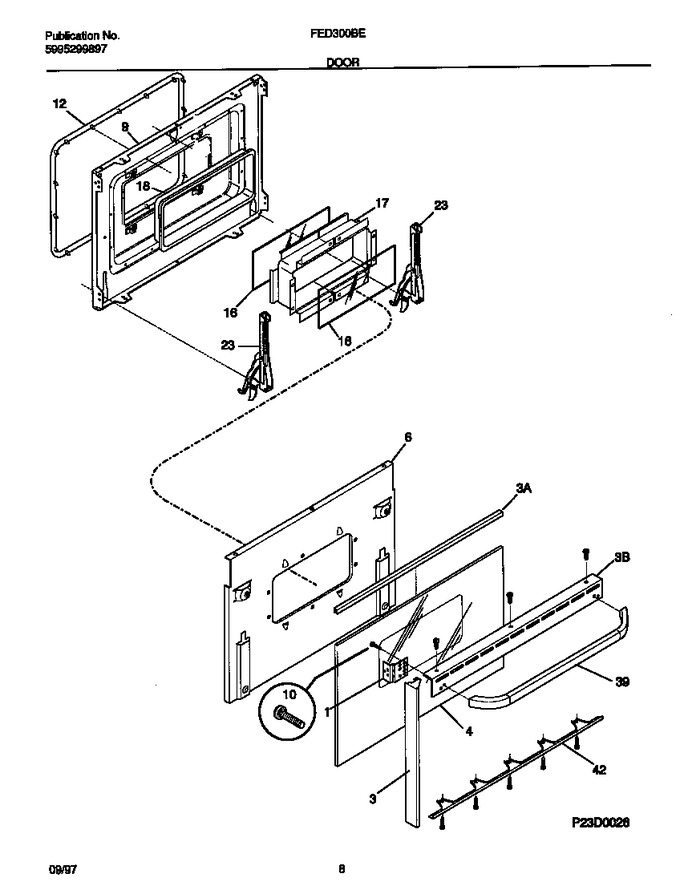

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	5303311200		Trim,oven Door ,black ,lower		Appelez-nous	-
3	318028900		Trim-oven Door,upper				$ 34.82
3	318049201		Trim,oven Door ,black ,side		Appelez-nous	-
4	5303311199		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303311192		Shield-wool		Appelez-nous	-
9	318112907		Liner-oven Door		Appelez-nous	-
10	732022890		Screw, 10-24 X 5/8   (Replaces: 5303324305)			Immediately	$ 1.84
12	5303311134		Seal-oven Door		Appelez-nous	-
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	318139000		Spacer-glass		Appelez-nous	-
17	5303310511		Retainer-glass (not Illustrated)		Appelez-nous	-
18	5303310505		Seal-rope		Appelez-nous	-
23	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
23	5303320452		Hinge		Appelez-nous	-
39	316091118		Handle-door, Black, Oven		Appelez-nous	-
42	318049019		Trim-oven Door, Black		Appelez-nous	-
*59496	318014300		Spacer-handle, Black, (2)				$ 36.44
*59497	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*59498	5303300265		Screw, 8-18 X 1/2				$ 15.17
*59499	5303300414		Spacer, Cork & Rubber				$ 13.18
*59500	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*59501	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*59502	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
