SELECT A DIAGRAM

01 - Base


02 - Control Panel


03 - Pump


04 - Top


05 - Transmission, Dual Drive


06 - Tub

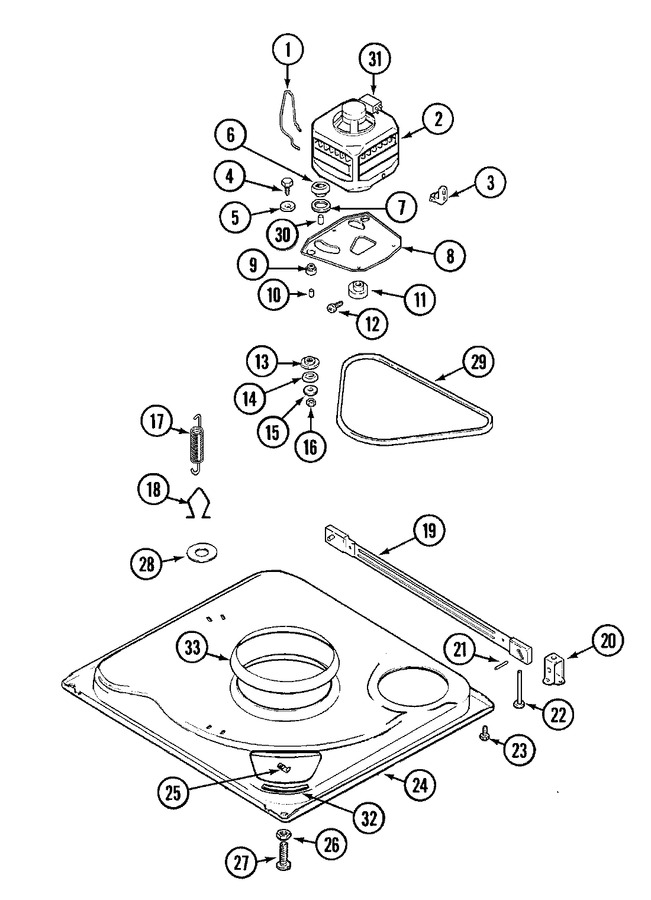

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22004376		Spring, Motor Pivot   (Replaces: 21001110)	10			$ 8.07
2	21001231		Motor (2 Speed-230v/50-60hz)	10	Appelez-nous	-
3	21001109		Slide, Foot	10	Appelez-nous	-
4	25-7833		Screw	10	Appelez-nous	-
5	25-7834		Washer	10	Appelez-nous	-
6	33-9946		Isolator, Motor	10			$ 32.40
7	33-9944		Washer	10	Appelez-nous	-
8	21001111		Plate, Motor	12	Appelez-nous	-
9	WP35-3646		Isolator, Motor Plate   (Replaces: 35-3646)	12			$ 6.69
10	25-7831		Spacer	10			$ 8.04
11	W10143344		Pulley, Motor (60 Hz)   (Replaces: 21001475)	10			$ 112.73
12	25-7117		Set Screw	10	Appelez-nous	-
13	33-9943		Motor Slide	10	Appelez-nous	-
14	33-9967		Washer, Motor Isolator	10			$ 5.27
15	25-7047		Washer, Flat	10			$ 30.39
16	WPY707702		Nut, Motor Plate Asy To Motor   (Replaces: 25-7325)	10		Immediately	$ 6.26
17	21001165		Spring, Suspension	10	Appelez-nous	-
17	21001138		Tool, 6 Point Spring	10	Appelez-nous	-
18	WP21001166		Hook, Suspension Spring   (Replaces: 21001166)	10			$ 6.93
19	35-2049		Bar, Stabilizer (with Guide)	10	Appelez-nous	-
20	35-2046		Bracket, Stabilizer	10			$ 39.94
21	35-2052		Pin, Stabilizer	10			$ 6.02
22	WP22004469		Foot Pad Assy. (rear)   (Replaces: 35-3020)	10			$ 14.52
23	WP489483		Screw, No.10 Torq Limiting   (Replaces: 25-7828)	10			$ 9.78
24	21001169		Base	10	Appelez-nous	-
25	25-7838		Speednut	10	Appelez-nous	-
26	25-7915		Hex Nut	10	Appelez-nous	-
27	35-0772		Foot, Front	10	Appelez-nous	-
27	35-0837		Pad, Front Foot	10	Appelez-nous	-
28	Y25-7951		Washer, Suspension Hook	10	Appelez-nous	-
29	35-2279		Belt, Drive	10			$ 55.15
30	25-7830		Spacer	10			$ 8.39
31	33-9765		Switch, Motor	10	Appelez-nous	-
32	35-2065		Pad, Motor Plate	10	Appelez-nous	-
33	WP21002026		Snubber   (Replaces: 21001161)	10		Immediately	$ 9.68

    View Diagram in Separate Window       Print Part List
