01 - Base

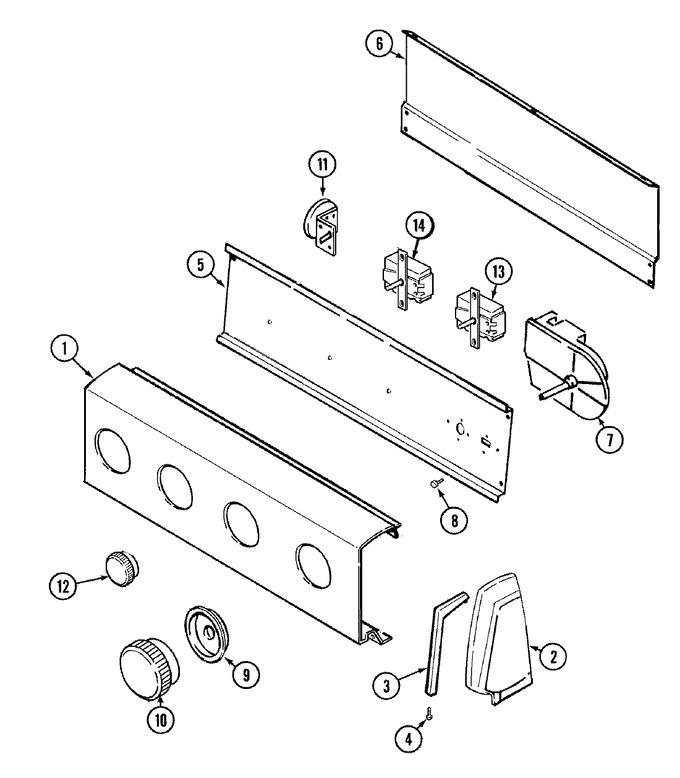

02 - Control Panel
03 - Pump
04 - Top
05 - Transmission, Dual Drive
06 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 21001480 | Panel Control (wht) | 10 |
|
- | ||||
| 2 | 35-2669 | Cap, End (lt)(wht) | 10 |
|
- | ||||
| 2 | 35-2668 | Cap, End (rt)(wht) | 10 |
|
- | ||||
| 3 | 31001054 | Trim, Endcap (rt Wht) | 10 |
|
- | ||||
| 3 | 31001055 | Trim, Endcap (lt Wht) | 10 |
|
- | ||||
| 4 | 25-7760 | Screw | 10 |
|
- | ||||
| 5 | 31001193 | Pad, Shield | 10 |
|
- | ||||
| 6 | 21001460 | Shield, Rear | 10 |
|
- | ||||
| 6 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 7 | 21001344 | Timer, Export | 10 |
|
- | ||||
| 8 | WP3400094 | Screw, Timer (Replaces: 31001029) | 10 |
|
$ 7.14 | ||||
| 9 | 35-3965 | Skirt & Ring Assy (wht) | 10 |
|
- | ||||
| 10 | 35-3963 | Knob, Timer | 10 |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | WP21001554 | Switch, Water Level (Replaces: 35-3691) | 10 |
|
$ 143.59 | ||||
| 12 | 35-3961 | Knob, Selector | 10 |
|
- | ||||
| 13 | 21001141 | Switch, Water Temperature | 10 |
|
- | ||||
| 14 | 21001142 | Switch, Speed | 10 |
|
- | ||||
| NI | 16009099 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 21001725 | Manual, Use & Care (span) | 10 |
|
- |
