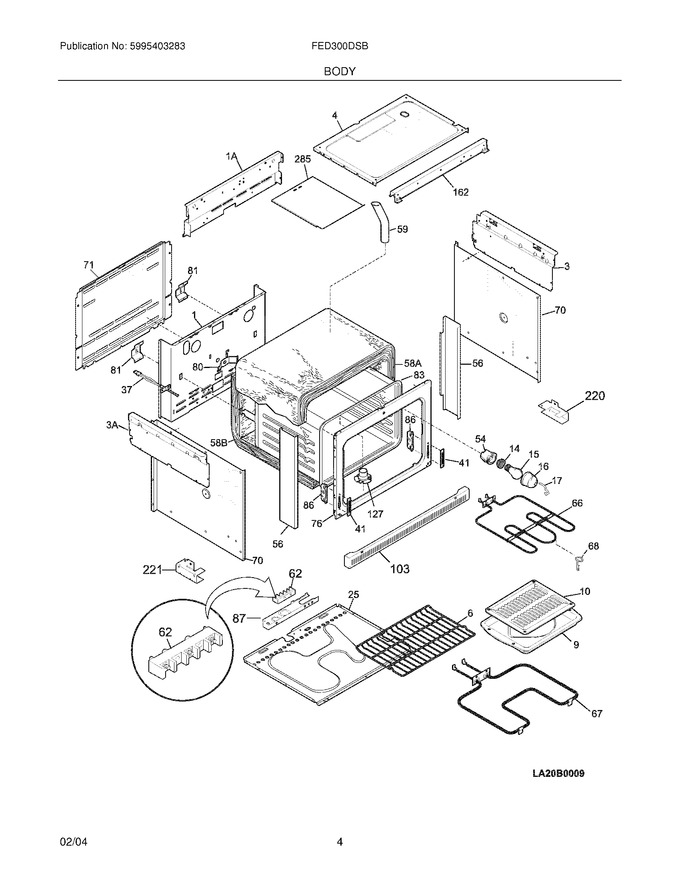

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066402		Panel,main Back		Appelez-nous	-
3	318225200		Panel,bodyside ,upper Rh		Appelez-nous	-
4	318073902		Panel,subtop		Appelez-nous	-
6	318025314		Rack,oven   (Replaces: 318025308)			Immediately	$ 148.70
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318179107		Panel,heat Shield ,sm Oven Bottom		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
56	318225911		Trim,oven ,white		Appelez-nous	-
59	318072541		Tube,vent ,oven		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
68	5304403015		Support,element Hanger				$ 35.04
70	318194400		Shield,insulation				$ 33.03
71	5303310515		Panel,wiring Cover ,rear				$ 368.97
76	318225301		Front,oven		Appelez-nous	-
80	5303324473		Bracket,oven Mounting		Appelez-nous	-
81	318192400		Spring,oven				$ 312.53
83	318089613		Liner,oven				$ 205.64
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	318111800		Plate,cord Set Mtg		Appelez-nous	-
103	5303300213		Trim,base ,white		Appelez-nous	-
127	318230000		Adapter,vent Tube ,with Converter		Appelez-nous	-
162	318225800		Box,extension		Appelez-nous	-
220	5304401475		Bracket		Appelez-nous	-
221	5304401476		Bracket		Appelez-nous	-
285	318236200		Shield,hidden Wires		Appelez-nous	-
1A	318225100		Panel,main Back ,upper		Appelez-nous	-
3A	318225201		Panel,bodyside ,upper Lh		Appelez-nous	-
58A	318133700		Insulation,oven Wrapper		Appelez-nous	-
58B	318133747		Insulation,oven Back		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F67	318255006		Element,bake ,3000w   (Replaces: 318255000)			Immediately	$ 185.14
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	318531702		Spacer   (Replaces: 318014110)				$ 9.93
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	318078526		Box & Wires Assy		Appelez-nous	-
NI	5303325856		Kit,anti-tip		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
