SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Maintop

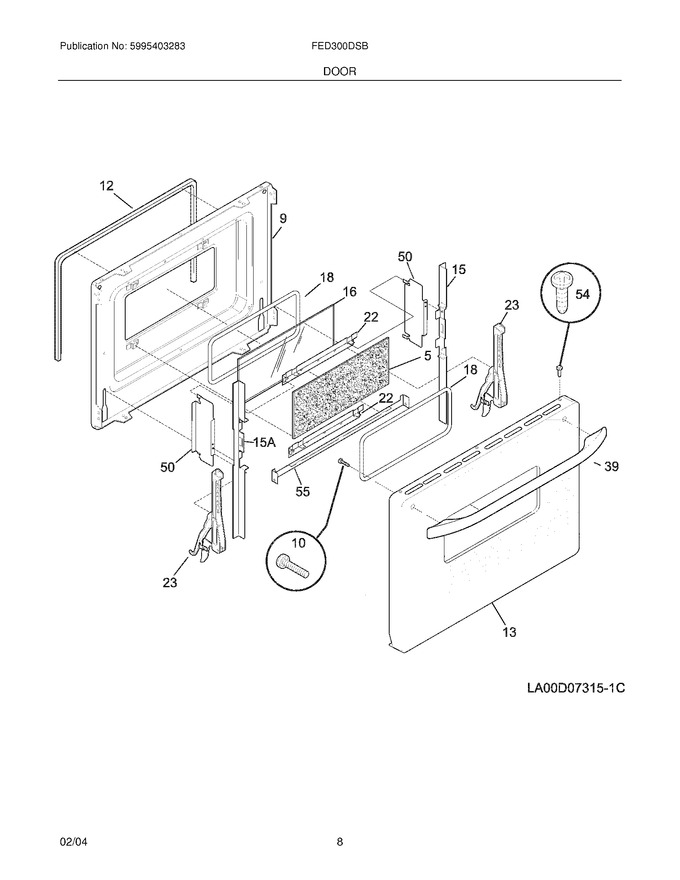

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door,tinted ,inner		Appelez-nous	-
9	318157017		Liner-door		Appelez-nous	-
10	5304414648		Screw,10-24 ,(4)   (Replaces: 5303308458)				$ 14.18
12	318053301		Seal-oven Door			Immediately	$ 122.90
13	318009074		Panel,oven Door ,white		Appelez-nous	-
15	5303311153		Bracket,glass Mtg ,rs				$ 10.87
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
18	318053203		Gasket,door Glass Seal ,outer				$ 57.54
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
39	316270201		Handle-door,white   (Replaces: 316203001)			Immediately	$ 128.29
50	318144900		Panel,side Brace ,glass		Appelez-nous	-
54	316021109		Screw,8-18 X 17/32 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
55	318122300		Bracket,glass Support				$ 11.39
15A	5303311154		Bracket,glass Mtg ,ls		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
