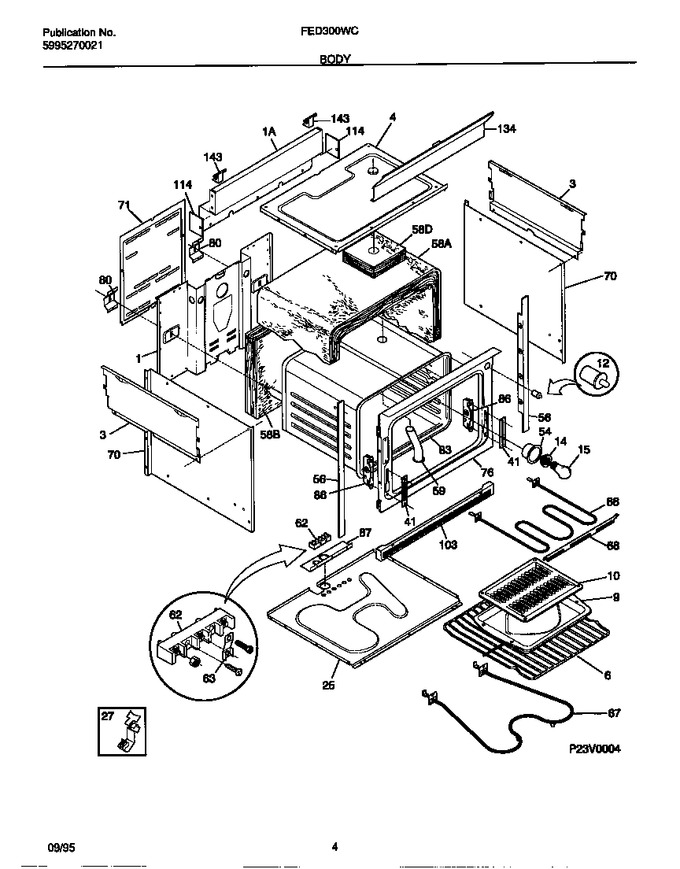

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303286183		Panel-back, Upper		Appelez-nous	-
1	5303310527		Back-main		Appelez-nous	-
3	5303300143		Panel-bodyside		Appelez-nous	-
4	5303311138		Burner Box		Appelez-nous	-
6	318025314		Rack-oven   (Replaces: 5303310522)			Immediately	$ 148.70
7	5303310506		Hinge Assy		Appelez-nous	-
9	5303292159		Pan-broiler		Appelez-nous	-
10	5303296872		Insert-broiler Pan		Appelez-nous	-
12	5301314211		Switch-oven Light				$ 95.29
14	316116400		Socket-light/lamp, Oven   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
25	5303311141		Shield-heat, Lower		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	318002703		Trim-oven Front		Appelez-nous	-
58	5303310516		Insulation, Oven Back		Appelez-nous	-
58	3008673		Insulation-baffle, Oven Door		Appelez-nous	-
58	5303310519		Insulation, Oven Wrapper		Appelez-nous	-
59	5303311139		Tube-oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
66	318255605		Element-broil   (Replaces: 5303310513)			Immediately	$ 192.78
67	318255006		Element-bake   (Replaces: 5303310512)			Immediately	$ 185.14
68	5303307563		Support-element		Appelez-nous	-
70	5303300142		Shield-insulation		Appelez-nous	-
71	316039801		Shield-wire		Appelez-nous	-
76	5303311140		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
83	5303310523		Oven-liner, Comp		Appelez-nous	-
86	5303310524		Channel-hinge		Appelez-nous	-
103	5303300214		Trim-base		Appelez-nous	-
114	3051827		Plate-filler		Appelez-nous	-
134	5303310515		Cover-wiring				$ 368.97
143	5303300148		Bracket-hinge		Appelez-nous	-
*26840	5303311171		Conduit & Wire Assy		Appelez-nous	-
*26841	5303311146		Plate-mounting		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
