SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer

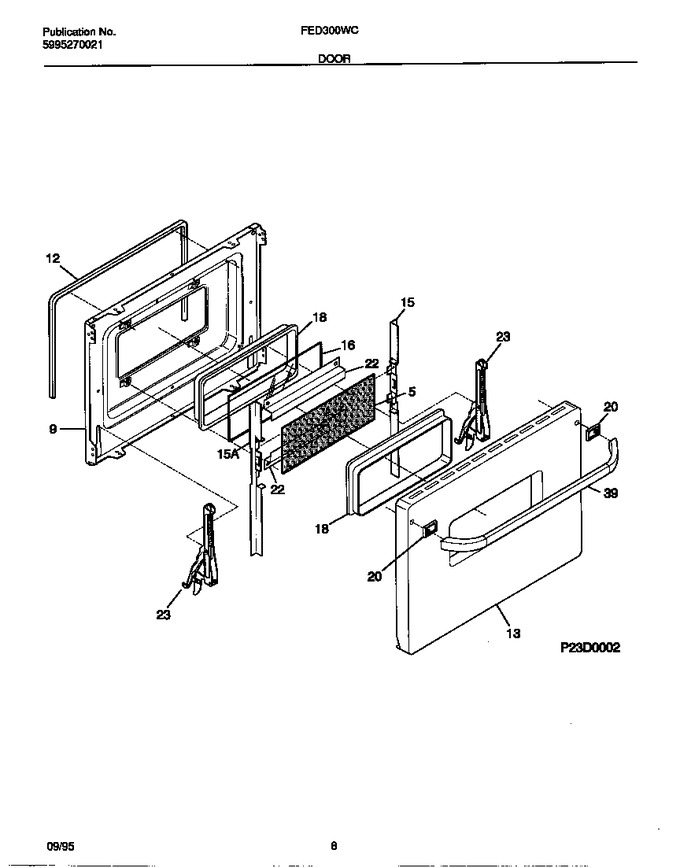

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door, Inner		Appelez-nous	-
9	5303311133		Liner-oven Door		Appelez-nous	-
12	5303311134		Seal-oven Door		Appelez-nous	-
13	318009002		Panel-oven Door, Almond		Appelez-nous	-
15	5303311136		Bracket-glass Mtg, Rh		Appelez-nous	-
15	5303311137		Bracket-glass Mtg, Lh		Appelez-nous	-
16	5303310507		Glass-oven Door, Heat Barrier		Appelez-nous	-
18	5303310505		Seal-rope		Appelez-nous	-
20	5303310504		Spacer-handle, Small Oven, (2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
39	5303305532		Handle-door, Almond, Oven		Appelez-nous	-
39	5303311135		Screw-handle (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
