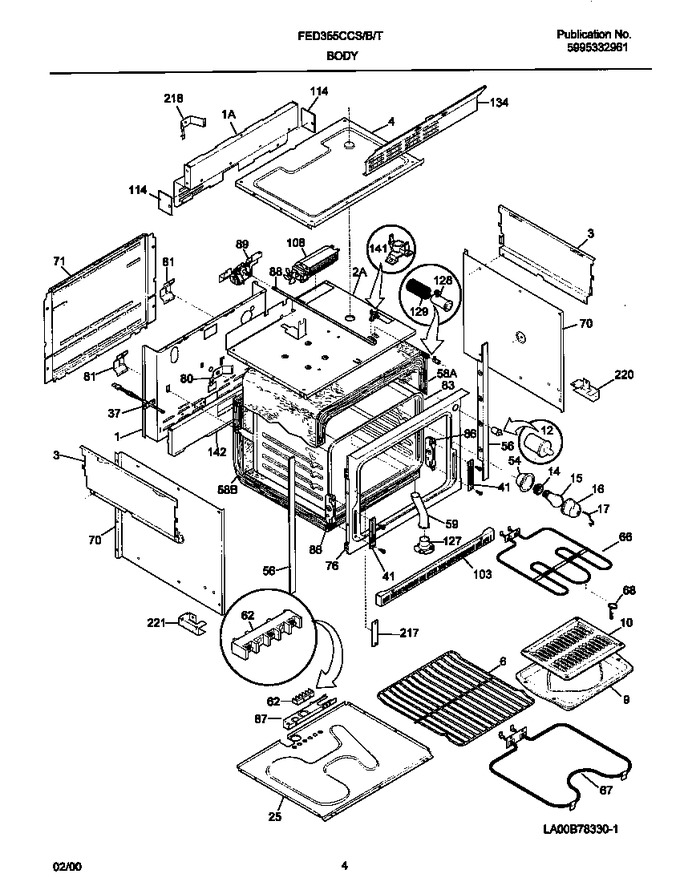

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Body
04 - Top
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066402 | Back-main |
|
- | |||||
| 1 | 318070901 | Back-main, Upper |
|
- | |||||
| 2 | 318108600 | Shield,oven Top |
|
- | |||||
| 3 | 5303300143 | Panel-upper Side |
|
- | |||||
| 4 | 318133400 | Burner Box |
|
- | |||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 9 | 318138800 | Pan-broiler |
|
- | |||||
| 10 | 318126400 | Insert-broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 25 | 318179100 | Shield Heat Lower |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318002702 | Trim-oven Front |
|
- | |||||
| 58 | 5303310538 | Insulation Oven Back |
|
- | |||||
| 58 | 5303310539 | Insulation Wrapper |
|
- | |||||
| 59 | 5303311139 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 5303310515 | Cover-wiring |
|
$ 368.97 | |||||
| 76 | 318124100 | Front-oven |
|
- | |||||
| 80 | 5303324473 | Bracket-oven |
|
- | |||||
| 83 | 318089608 | Liner-oven,comp. |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 87 | 318111800 | Plate-mounting,cord Set |
|
- | |||||
| 88 | 5303311160 | Rod-latch |
|
- | |||||
| 103 | 5303300213 | Trim-base |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 114 | 318175100 | Plate-filler |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 134 | 5303319029 | Shield-rear Wall |
|
- | |||||
| 141 | 5303284446 | Switch, Thermal Cutout |
|
- | |||||
| 142 | 318123901 | Deflector |
|
- | |||||
| 217 | 316042300 | Plate,warning |
|
- | |||||
| 220 | 5304401475 | Bracket |
|
- | |||||
| 221 | 5304401476 | Bracket |
|
- | |||||
| *28204 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *28205 | 5303300265 | Screw,8-18 X 1/2 ,chrome |
|
$ 15.17 | |||||
| *28206 | 5303311124 | Screw,(4) |
|
- | |||||
| *28207 | 5303323129 | Screw,8 X 3/4 |
|
- | |||||
| *28208 | 318096002 | Motor-latch |
|
- | |||||
| 89A | 318095956 | Motor-latch Assy (Replaces: 318095921) |
|
Immediately | $ 143.83 | ||||
| 89B | 318120710 | Switch-door,(2) |
|
- |
