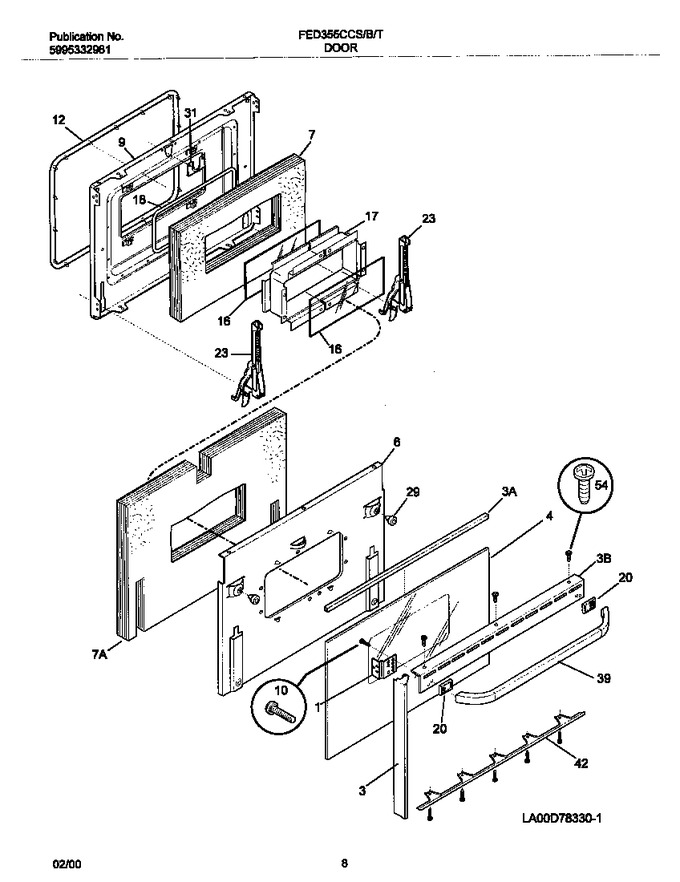

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	318049020		Trim-oven Door, White, Upper				$ 156.82
3	318049202		Trim-oven Door, White, Side				$ 7.93
3	318028900		Trim-oven Door,upper				$ 34.82
4	5303311191		Glass-oven Door, White, Outer				$ 548.10
6	5303311192		Shield-wool		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
7	5303311150		Insulation, Oven Door		Appelez-nous	-
9	318112906		Liner-oven Door		Appelez-nous	-
10	732022890		Screw Handle,10-24 X 5/8   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053103		Seal-oven Door			Immediately	$ 150.03
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	318139000		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
22	5303310511		Retainer-glass		Appelez-nous	-
23	318024700		Hinge-oven Door, Assembly		Appelez-nous	-
29	318147410		Bumper Base Ete>24``		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	316091119		Handle-door, White, Oven		Appelez-nous	-
42	5303311194		Trim,oven Door ,white ,lower		Appelez-nous	-
54	316021109		Screw,8-18 X 17/32 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
*28211	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*28212	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
