SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven


05 - Top Assembly

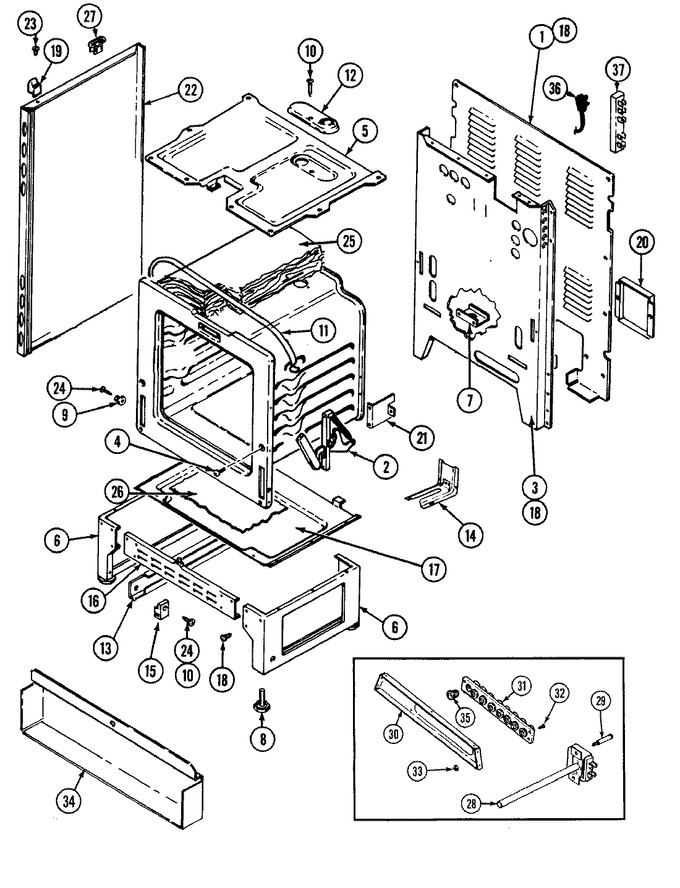

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F381-51		Cover, Main Back Wire	17	Appelez-nous	-
2	7106P048-60		Hinge, Door	17	Appelez-nous	-
3	4002F189-80		Back, Main	17	Appelez-nous	-
4	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	17			$ 4.29
5	4011F208-19		Box, Burner	17	Appelez-nous	-
6	4020W007-80		Pedestal, Side	17	Appelez-nous	-
7	3605F174-51		Plate, Conduit Tubing	17	Appelez-nous	-
8	7101P306-60		Leg, Leveling	17	Appelez-nous	-
9	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	17			$ 7.07
10	7101P103-60		Screw	17	Appelez-nous	-
11	4820F001-59		Strap, Retainer	17	Appelez-nous	-
12	4005F432-45		Cover, Vent	17	Appelez-nous	-
13	3406F028-51		Runner, Drawer	17	Appelez-nous	-
14	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	17		Immediately	$ 4.69
14	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	17			$ 26.33
15	8004P033-60		Support, Drawer	17	Appelez-nous	-
16	4020F001-80		Pedestal, Front/rear	17	Appelez-nous	-
17	3804F112-51		Retainer, Insulation	17	Appelez-nous	-
18	W11233072		Screw   (Replaces: 7101P290-60)	17		Immediately	$ 12.62
19	8010P087-60		Spacer, Main Top (lt)	17	Appelez-nous	-
19	8010P088-60		Spacer, Main Top (rt)	17	Appelez-nous	-
20	4005F427-51		Cover, Access	17	Appelez-nous	-
21	3807F400-51		Support,oven Rear	17	Appelez-nous	-
22	2618F099-71		Panel, Side (wht)	17	Appelez-nous	-
23	7101P313-60		Screw (8abx3/8-zn)	17	Appelez-nous	-
24	W11772394		Screw   (Replaces: 7101P334-60)	17		Immediately	$ 10.94
25	4804F031-60		Insulation, Oven Back	17	Appelez-nous	-
25	4804F032-60		Insulation, Oven Wrapper	17	Appelez-nous	-
26	8312P058-60		Foil, Insulation Retainer	17	Appelez-nous	-
27	8007P023-60		Bushing, Prop	17	Appelez-nous	-
28	7404P057-60		Thermostat, Redundant	17	Appelez-nous	-
29	7101P337-60		Screw	17	Appelez-nous	-
30	3801F309-80		Bracket, Fuse	17	Appelez-nous	-
31	7401A032-60		Block, Fuse Assy.	17	Appelez-nous	-
32	WP3400074		Screw   (Replaces: 7101P068-60)	17			$ 6.47
33	M0282009		Nut   (Replaces: 7103P064-60)	17			$ 12.06
34	4005F417-51		Cover, Fuse Block	17	Appelez-nous	-
35	7416P005-60		Fuse, 125v 20a	17	Appelez-nous	-
35	7416P006-60		Fuse, 125v 15a	17	Appelez-nous	-
36	7402P036-60		Cord, Power	17	Appelez-nous	-
37	5175D068-60		Harness, Fuse To Control Panel	17	Appelez-nous	-
37	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)	17		Immediately	$ 31.65

    View Diagram in Separate Window       Print Part List
