SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven


05 - Top Assembly

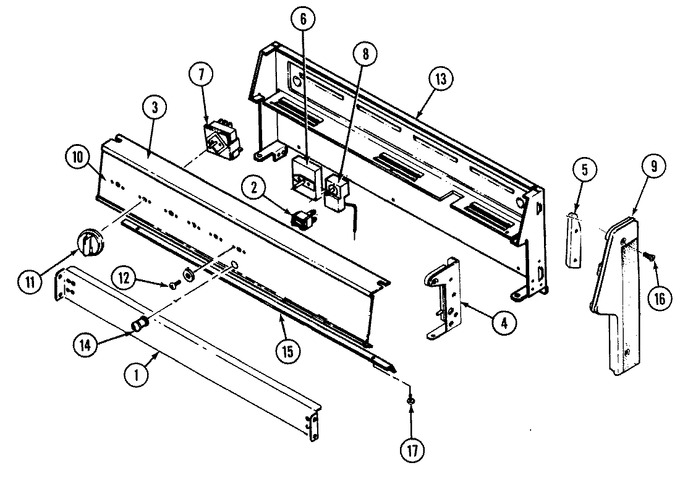

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3802F088-51		Brace, Control Panel	17	Appelez-nous	-
2	7407P081-60		Light, Indicator	17	Appelez-nous	-
3	2601F412-09		Panel, Control	17	Appelez-nous	-
3	WP74004005		Screw   (Replaces: 7118P013-60)	17			$ 6.95
4	3418A088-34		Hinge, Main Top (lt)	17	Appelez-nous	-
4	3418A087-34		Hinge, Main Top (rt)	17	Appelez-nous	-
5	3807F449-45		Support, Control Pnl (rt)	17	Appelez-nous	-
5	3807F450-45		Support, Control Pnl (lt)	17	Appelez-nous	-
6	WP7403P255-60		Switch, Selector   (Replaces: 7403P255-60)	17			$ 131.41
7	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	17		Immediately	$ 57.78
7	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	17		Immediately	$ 35.10
8	7404P081-60		Thermostat	17	Appelez-nous	-
9	7726P052-60		End Cap (lt-blk)	17	Appelez-nous	-
9	7726P051-60		End Cap (rt-blk)	17	Appelez-nous	-
9	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	17			$ 15.94
10	7703P615-60		Trim, Inlay	17	Appelez-nous	-
11	7731P082-60		Knob, Therm/burner (blk)	17	Appelez-nous	-
12	WP7101P309-60		Screw   (Replaces: 7101P309-60)	17		Immediately	$ 6.26
13	W11233072		Screw, Housing   (Replaces: 7118P015-60)	17		Immediately	$ 12.62
13	4001F091-51		Housing, Control Panel	17	Appelez-nous	-
14	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	17			$ 6.73
15	3604F201-80		Shield, Sight	17	Appelez-nous	-
16	7101P317-60		Screw	17	Appelez-nous	-
17	5125A359-60		Wires, Loose	17	Appelez-nous	-
17	5170D150-60		Harness, Control Panel	17	Appelez-nous	-
17	W11233072		Screw, Housing   (Replaces: 7118P015-60)	17		Immediately	$ 12.62
NI	8113P023-60		Manual, Use & Care	17	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
