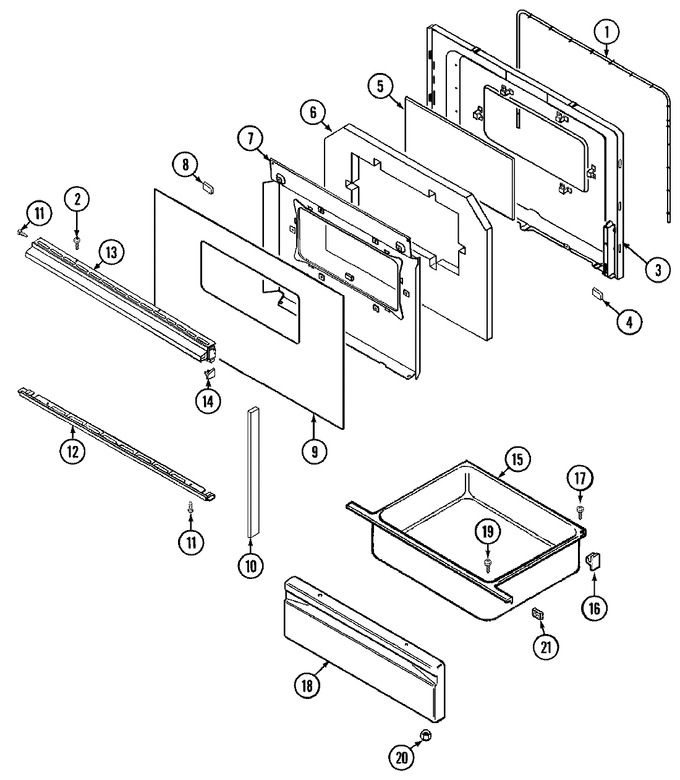

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
2	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
3	2402W213-19		Lining, Door	10	Appelez-nous	-
4	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
5	7902P319-60		Glass, Door (inner)----na	10	Appelez-nous	-
6	7002P158-60		Insulation, Door	10	Appelez-nous	-
7	3601F240-80		Baffle, Door	10	Appelez-nous	-
8	8270P095-60		Tape, Double Sided	10	Appelez-nous	-
9	7902P321-60		Glass, Door (blk)	10	Appelez-nous	-
10	7744P055-60		End Cap, Oven Door (blk)	10	Appelez-nous	-
11	W11233072		Screw   (Replaces: 74001280)	10		Immediately	$ 12.62
12	7744P105-60		Trim, Bottom (blk)----na	10	Appelez-nous	-
13	7701P103-60		Handle, Door (blk)	10	Appelez-nous	-
14	7744P075-60		End Cap (rt)	10	Appelez-nous	-
14	7744P076-60		End Cap (lt)	10	Appelez-nous	-
15	3405F019-80		Drawer, Storage	10	Appelez-nous	-
16	8004P026-60		Support, Drawer (rear)	10			$ 9.29
17	W11233072		Screw   (Replaces: 74001280)	10		Immediately	$ 12.62
18	2416F039-62		Panel, Drawer (wht)	10	Appelez-nous	-
19	W11233072		Screw   (Replaces: 74001280)	10		Immediately	$ 12.62
20	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
21	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	10			$ 11.95
