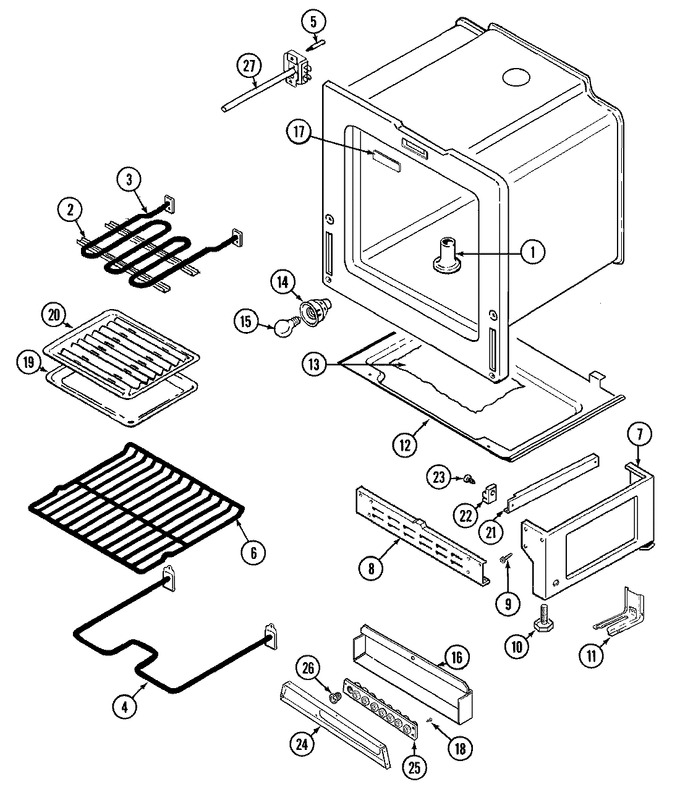

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8026P019-60 | Tube, Vent | 10 |
|
- | ||||
| 2 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 2 | 3807F389-45 | Support, Element | 10 |
|
- | ||||
| 3 | Y04000057 | Element, Broil | 10 |
|
$ 94.48 | ||||
| 4 | WP74003019 | Element, Bake (Replaces: Y04000058) | 10 |
|
Immediately | $ 51.10 | |||
| 4 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 7101P337-60 | Screw | 10 |
|
- | ||||
| 6 | WPW10282492 | Rack, Oven (Replaces: 7801P047-60) | 10 |
|
Immediately | $ 65.15 | |||
| 7 | 4020W013-80 | Pedestal (sides) | 10 |
|
- | ||||
| 8 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 7101P306-60 | Leg, Leveling | 10 |
|
- | ||||
| 11 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 11 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 | |||
| 12 | 3804F112-47 | Retainer, Insulation | 10 |
|
- | ||||
| 13 | 8312P058-60 | Foil, Insulation Retainer | 10 |
|
- | ||||
| 14 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 10 |
|
Immediately | $ 66.10 | |||
| 15 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 10 |
|
Immediately | $ 1.98 | |||
| 16 | 4005F445-51 | Cover, Fuse Block | 10 |
|
- | ||||
| 16 | WP179051 | Screw (Replaces: 7101P263-60) | 10 |
|
Immediately | $ 7.16 | |||
| 17 | 8114P335-60 | Cover, Lock Slot | 10 |
|
- | ||||
| 18 | WP3400074 | Screw (Replaces: 7101P068-60) | 10 |
|
$ 6.47 | ||||
| 19 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 20 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 21 | 3406F028-51 | Runner, Drawer | 10 |
|
- | ||||
| 22 | 8004P025-60 | Support, Drawer | 10 |
|
- | ||||
| 23 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 24 | 3801F309-80 | Bracket, Fuse | 10 |
|
- | ||||
| 25 | 7401A032-60 | Block, Fuse Assy. | 10 |
|
- | ||||
| 26 | 5175D060-60 | Harness, Fuse To Control Panel | 10 |
|
- | ||||
| 26 | 7416P005-60 | Fuse, 125v 20a | 10 |
|
- | ||||
| 26 | 7416P006-60 | Fuse, 125v 15a | 10 |
|
- | ||||
| 27 | 7404P057-60 | Thermostat, Redundant | 10 |
|
- | ||||
| 27 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 |
