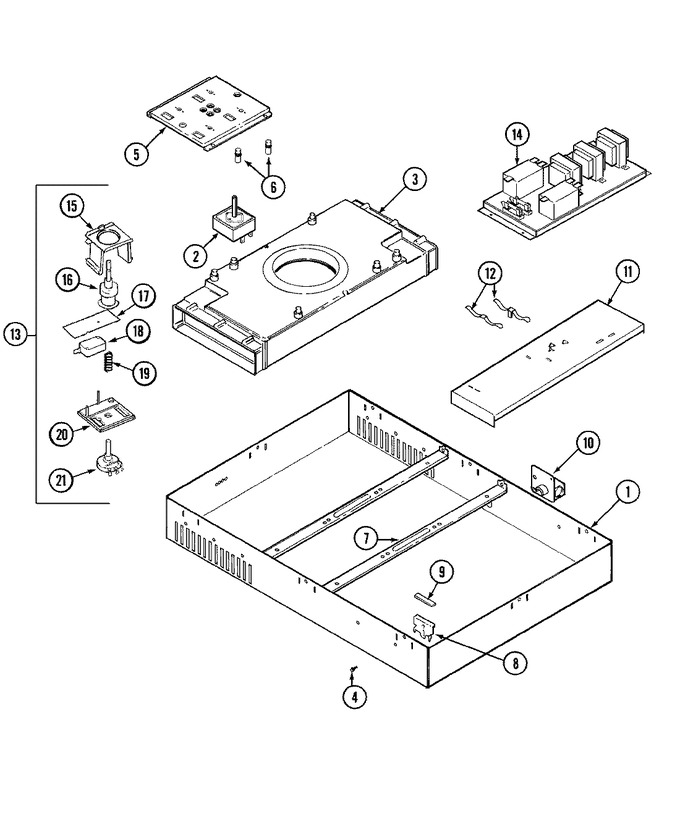

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001243		Bottom, Burner Box	11	Appelez-nous	-
1	WP71001171		Screw   (Replaces: Y04100522)	11			$ 6.26
2	W11120791		Switch, Infinite   (Replaces: 703650)	11		Immediately	$ 98.55
2	Y705255		Gasket, Switch	11	Appelez-nous	-
3	71001104		Cartridge, Induction	11	Appelez-nous	-
4	WP90767		Screw   (Replaces: Y700502)	11		Immediately	$ 7.04
5	71002058		Screw, 8-32   (Replaces: Y04100363)	11			$ 5.82
5	71001107		Plate, Switch	11	Appelez-nous	-
6	Y706091		Wire, Pilot Light	11	Appelez-nous	-
6	Y706125		Light, Indicator	11	Appelez-nous	-
7	71001106		Support, Sw. Plate	11	Appelez-nous	-
8	71001108		Support, Glass	11	Appelez-nous	-
9	71001239		Pad, Glass Support	11	Appelez-nous	-
10	71001242		Wire Cable Assy.	11	Appelez-nous	-
10	702731		Screw	11	Appelez-nous	-
11	Y04100419		Crossbar, Elem Support	11	Appelez-nous	-
12	74007134		Spring, Element Support   (Replaces: Y04100418)	11			$ 10.51
13	71001436		Wire (wht)	11	Appelez-nous	-
13	Y04100425		Wire, Violet (18``)	11	Appelez-nous	-
13	Y04100433		Wire, Yellow	11	Appelez-nous	-
13	Y04100424		Wire, Yellow (15``)	11	Appelez-nous	-
13	71001238		Wire, Orange (hot)	11	Appelez-nous	-
13	71001240		Switch, Push To Turn	11	Appelez-nous	-
14	71001428		Wire, Yellow	11	Appelez-nous	-
14	71001429		Wire, Yellow	11	Appelez-nous	-
14	71001425		Filter, Induction----na	11	Appelez-nous	-
14	71001426		Wire, Violet	11	Appelez-nous	-
14	71001427		Wire, Violet	11	Appelez-nous	-
15	71001099		Top, Switch Frame	11	Appelez-nous	-
16	71001101		Shaft, Switch	11	Appelez-nous	-
17	71001948		Shield, Push To Turn	11	Appelez-nous	-
18	WP56001036		Switch, Micro   (Replaces: 71001105)	11			$ 74.84
19	71001241		Spring, Switch	11	Appelez-nous	-
20	71001100		Bottom, Switch Frame	11	Appelez-nous	-
21	71001102		Potentiometer	11	Appelez-nous	-
