01 - Body
02 - Top Assembly
New Model Search:

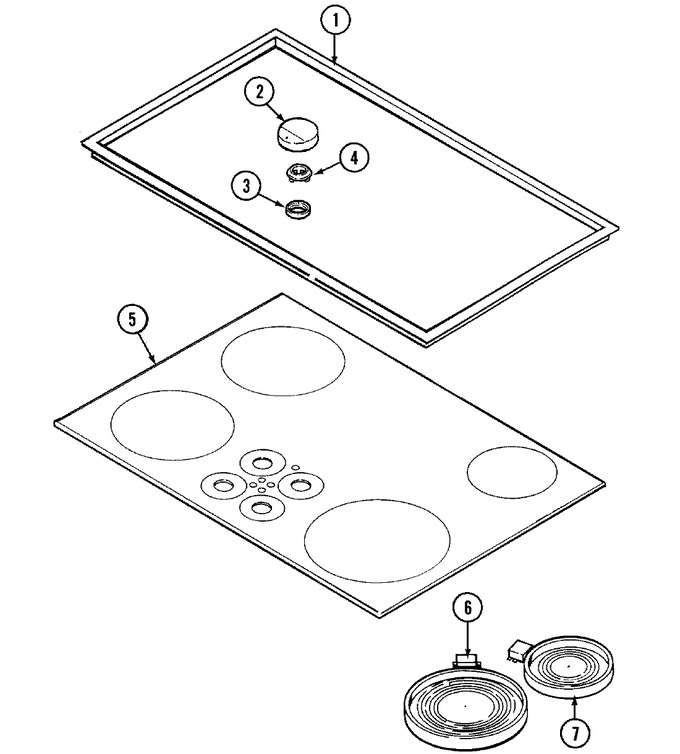

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001109 | Frame, Top (blk) | 11 |
|
- | ||||
| 2 | Y04100366 | Knob, Infinite (blk) | 11 |
|
$ 16.21 | ||||
| 3 | 71001237 | Seal, Ring----na | 11 |
|
- | ||||
| 4 | Y04100306 | Grommet (blk) | 11 |
|
- | ||||
| 5 | 71003286 | Tape, Foam (30``) | 11 |
|
$ 83.10 | ||||
| 5 | 71001236 | Glass, Top (blk Ceran) | 11 |
|
- | ||||
| 6 | W10823707 | Element, Radiant (2200w) (Replaces: 71001424) | 11 |
|
Immediately | $ 316.13 | |||
| 6 | Y04000063 | Limiter (8`` Element) | 11 |
|
- | ||||
| 7 | W10823704 | Element, Radiant (1200w) (Replaces: 71001423) | 11 |
|
Immediately | $ 309.01 | |||
| 7 | Y04000064 | Limiter (6`` Element) | 11 |
|
- | ||||
| NI | 71001437 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16010241 | Manual, Service | 11 |
|
- |
