01 - Blower Motor-cooling


02 - Body


03 - Control Panel


04 - Door


05 - Internal Controls


06 - Microwave


07 - Oven


08 - Trim Kit

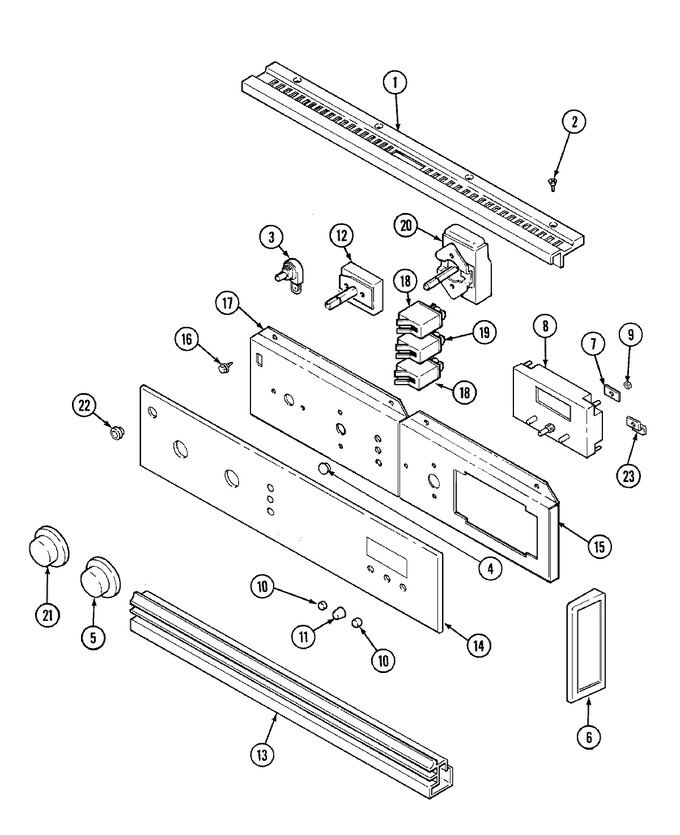

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	04100680		Extrusion, Top (alum)	1	Appelez-nous	-
2	712066		Screw	1	Appelez-nous	-
3	Y705011		Switch, Push (alum)	1	Appelez-nous	-
4	Y700630		Lens, Indicator Lights	1			$ 4.18
5	Y04100686		Knob, Thermostat (wht)	1	Appelez-nous	-
6	703136		End Cap (rt-chr)	1	Appelez-nous	-
6	DE81-09833A		End Cap (lt-chr)   (Replaces: 703137)	1			$ 761.31
7	703676		Bracket, Timer	1	Appelez-nous	-
8	12200028CP		Clock Kit, Electronic   (Replaces: 12200028)	1	Appelez-nous	-
9	703679		Palnut	1	Appelez-nous	-
10	WP7711P492-60		Knob, Clock (sm-gry)   (Replaces: Y704484)	1			$ 12.13
11	WP7711P492-60		Knob, Clock (lg-gry) ??   (Replaces: Y704485)	1			$ 12.13
12	703078		Switch, Selector (upper)	1	Appelez-nous	-
13	704458		Extrusion, Bottom (wht)	1	Appelez-nous	-
14	04100681		Glass, Control Panel	1	Appelez-nous	-
15	705336		Panel, Control (rt)	1	Appelez-nous	-
16	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
17	705337		Panel, Control (lt)	1	Appelez-nous	-
18	Y702394		Light, Indicator 240v	1	Appelez-nous	-
19	Y702393		Light, Indicator-120v	1	Appelez-nous	-
20	Y04100575		Thermostat	1			$ 214.97
22	04100688		Extension, Switch (alum)	1	Appelez-nous	-
23	703738		Harness, Wire	1	Appelez-nous	-
23	703089		Wire, Tan	1	Appelez-nous	-
23	701609		Angle, Attachment	1	Appelez-nous	-
23	702746		Tie, Mount Cable	1	Appelez-nous	-
23	DE81-04412A		Wire, Pink   (Replaces: 703090)	1			$ 327.97
23	DE81-09159A		Wire, Wire   (Replaces: 703370)	1			$ 313.88
23	705040		Resistor, Lead	1	Appelez-nous	-
NI	04100576		Control, Harness	1	Appelez-nous	-
NI	207748		Manual, Use & Care	1	Appelez-nous	-
NI	16000327		Guide, Quick Ref. - Maytag	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
