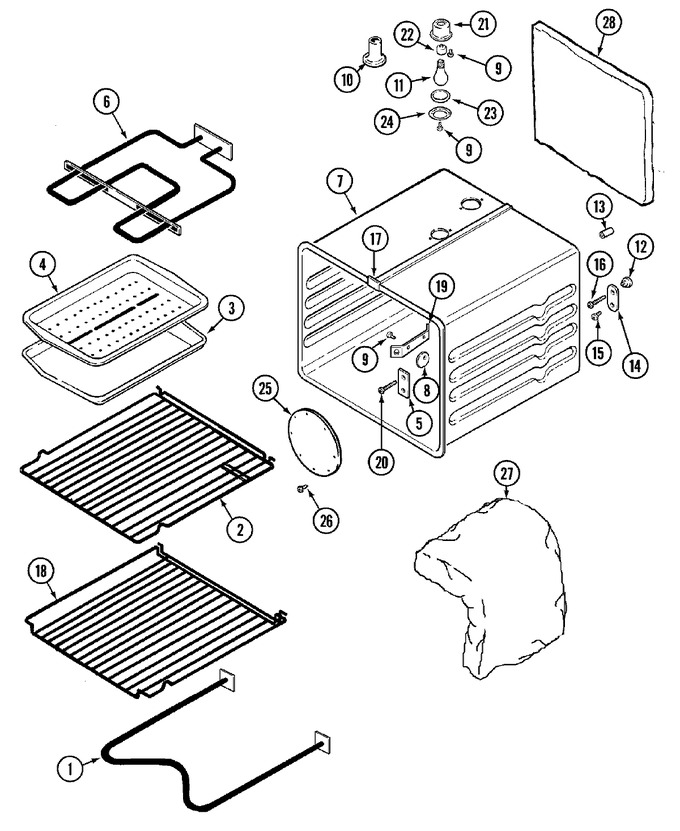

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y04100387		Element, Bake	1	Appelez-nous	-
2	Y704660		Rack, Oven	1			$ 104.03
3	4396923		Pan, Broil   (Replaces: 703164)	1		Immediately	$ 52.04
4	4396923		Insert, Broil Pan   (Replaces: 703165)	1		Immediately	$ 52.04
5	Y705342		Cover, Sensor Hole	1	Appelez-nous	-
6	WPY04100514		Element, Broil   (Replaces: Y704667)	1			$ 138.97
7	71001490		Oven Weld Assy.	14	Appelez-nous	-
7	04100572		Oven Weld Assembly	1	Appelez-nous	-
7	WP7101P434-60		Screw   (Replaces: 71001394)	14			$ 6.26
7	71001403		Washer, Alum	14	Appelez-nous	-
8	712088		Cover, Meat Probe	1	Appelez-nous	-
8	703007		Standoff	1	Appelez-nous	-
9	WP1163283		Screw   (Replaces: Y04100134)	1			$ 6.47
10	701738		Tube, Vent	1	Appelez-nous	-
11	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 16.80
12	715294		Nut, Tee	1	Appelez-nous	-
13	701741		Spacer, Oven	1	Appelez-nous	-
14	701742		Plate, Grounding	1	Appelez-nous	-
15	WP71001171		Screw, No.10/32 Torx   (Replaces: Y04100270)	1			$ 6.26
16	701744		Screw	1	Appelez-nous	-
17	Y702618		Clip, Oven	1	Appelez-nous	-
17	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
18	Y704662		Rack, Oven (offset)	1	Appelez-nous	-
19	Y701541		Clip, Bulb	1	Appelez-nous	-
20	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
21	704142		Receptacle, Holder	1	Appelez-nous	-
22	Y704145		Receptacle, Snap-in	1	Appelez-nous	-
23	Y704143		Lens, Light	1	Appelez-nous	-
24	Y704144		Retainer, Lens	1	Appelez-nous	-
25	705343		Plate, Non-convect	1	Appelez-nous	-
26	WP74003976		Washer   (Replaces: 702592)	1			$ 6.47
26	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
27	701702		Insulation, Wrap	1	Appelez-nous	-
28	701703		Insulation, Rear	1	Appelez-nous	-
