SELECT A DIAGRAM

01 - Cover

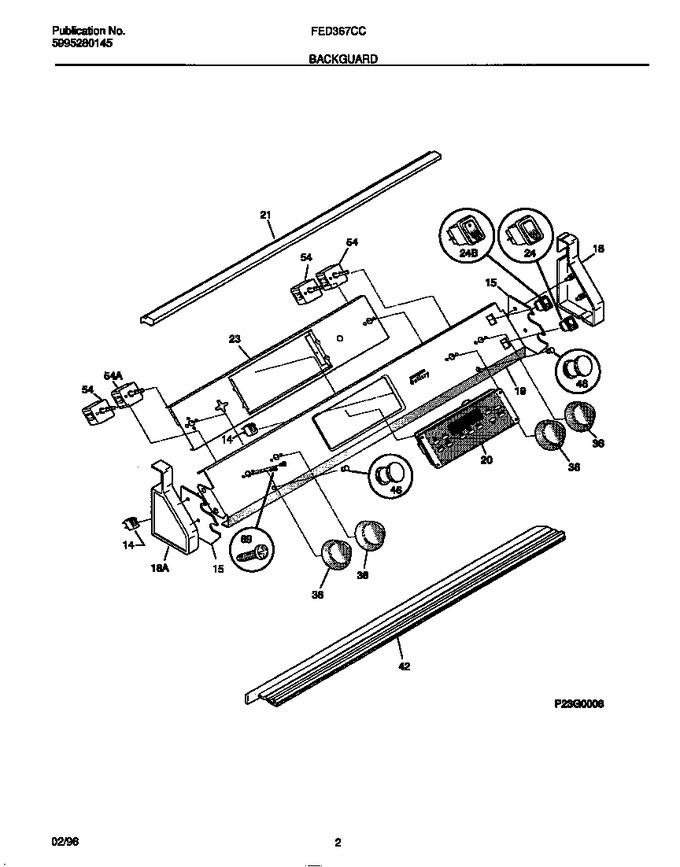

02 - Backguard


03 - Body


04 - Top


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303304668		End Cap, White, Rh		Appelez-nous	-
18	5303304671		End Cap, White, Lh		Appelez-nous	-
19	318005509		Panel-control		Appelez-nous	-
20	318012801		Clock/timer, Electronic		Appelez-nous	-
21	318027801		Trim-backguard, Top		Appelez-nous	-
23	318015000		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
24	316083100		Switch-rocker, White, Dual Element, (1)   (Replaces: 316076301)				$ 89.31
36	318016300		Knob-surface Unit, White		Appelez-nous	-
42	318106901		Trim-vent, White		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
54	318120501		Switch-surface Unit, Small, (3)				$ 244.13
54	5500-200		Switch-surface Unit, Double   (Replaces: 5303311186)			Immediately	$ 54.85
69	5303323137		Screw, Switch Mtg, (6)   (Replaces: 5303305528)				$ 11.88
*44120	5303300265		Screw, 8-18 X 1/2				$ 15.17
*44121	5303304692		Plate, Backup, Light Switch		Appelez-nous	-
*44122	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
