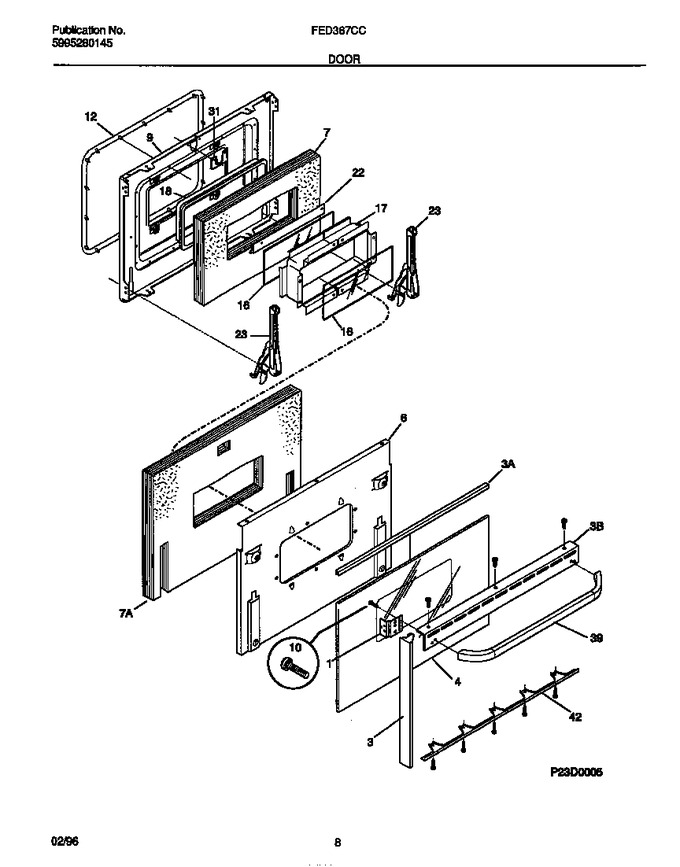

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	5303311194		Trim,oven Door ,white ,lower		Appelez-nous	-
3	318028900		Trim-oven Door				$ 34.82
3	318049202		Trim-oven Door, White, Side				$ 7.93
4	5303311191		Glass-oven Door, Black, Outer				$ 548.10
6	5303311192		Baffle-door		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
7	5303311150		Insulation, Oven Door		Appelez-nous	-
10	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	5303310534		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	318024700		Hinge		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	316270201		Handle-door, White, Oven   (Replaces: 5303311172)			Immediately	$ 128.29
42	318049002		Trim-oven Door, White, Upper		Appelez-nous	-
*44137	316021109		Screw, 8-18 X 3/8, White, (4)   (Replaces: 5303317175)			Immediately	$ 27.50
*44138	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
9A	318112901		Liner-oven Door		Appelez-nous	-
9B	5308007939		Plug, Door Liner (not Illustrated)		Appelez-nous	-
