SELECT A DIAGRAM

01 - Cover

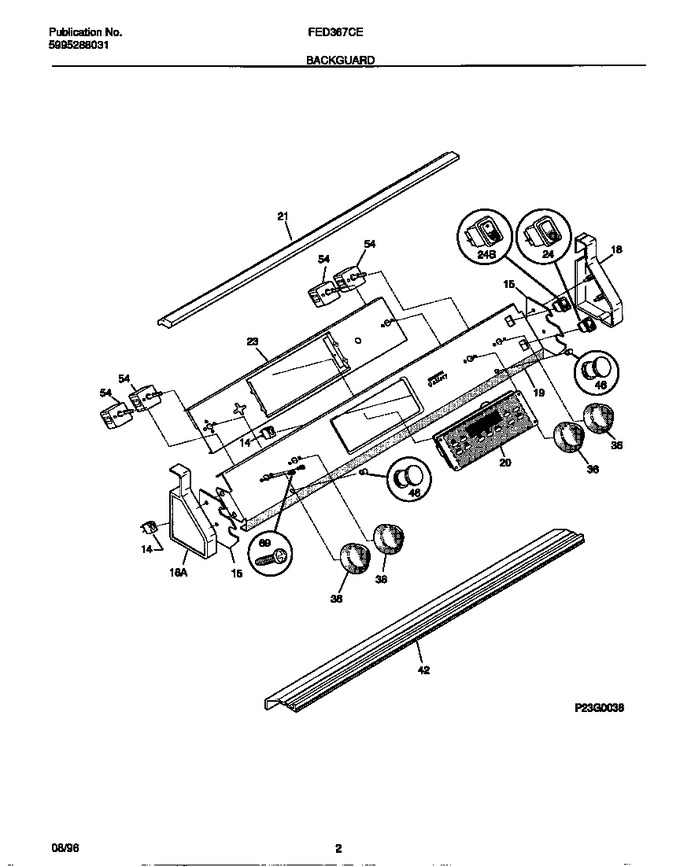

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
19	318005511		Panel-control		Appelez-nous	-
20	318012914		Clock/timer, Electronic		Appelez-nous	-
21	318027800		Trim-backguard, Top		Appelez-nous	-
23	318015501		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Gray, Oven Light   (Replaces: 316005612)			Immediately	$ 11.38
24	316076300		Switch-rocker, Grey, Dual Element		Appelez-nous	-
36	318016302		Knob-surface Unit, Black		Appelez-nous	-
42	318106900		Trim-vent, Black		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
54	318120501		Switch-surface Unit				$ 244.13
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*54120	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*54121	5303300265		Screw, 8-18 X 1/2				$ 15.17
*54122	5303304692		Plate, Backup, Light Switch		Appelez-nous	-
*54123	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
