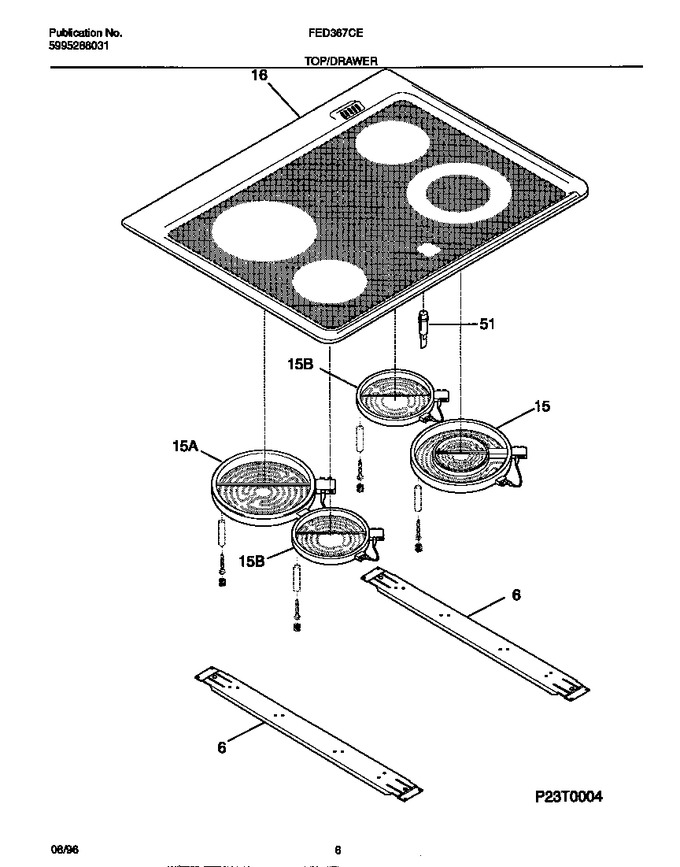

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303311190		Support-element		Appelez-nous	-
15	318050200		Element-surface, 2000/1000 W		Appelez-nous	-
15	318198817		Element-surface, 1200 W   (Replaces: 318050100)			Immediately	$ 192.78
15	318050101		Element-surface, 2100w		Appelez-nous	-
16	318079503		Main Top, Glass, Black		Appelez-nous	-
51	5303297484		Light-indicator		Appelez-nous	-
*54134	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*54135	5303300414		Spacer, Cork & Rubber				$ 13.18
*54136	5303317177		Spring-element Mtg				$ 12.74
*54137	5303317178		Spacer-element				$ 2.42
*54138	5303317179		Screw-element				$ 2.42
