SELECT A DIAGRAM

01 - Body


02 - Top Assembly


03 - Wiring Information

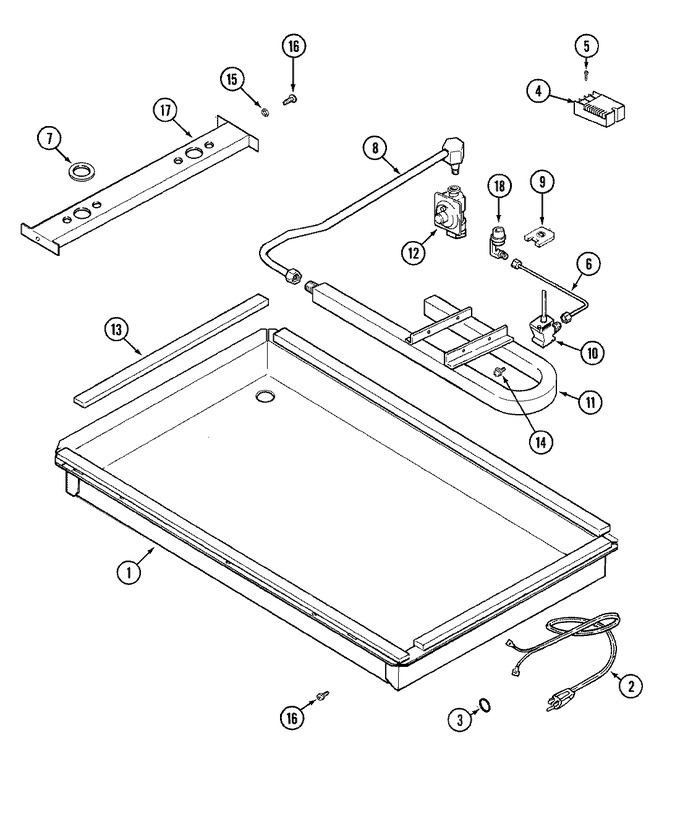

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001730		Box, Burner	11	Appelez-nous	-
2	Y705805		Cord, Power	11	Appelez-nous	-
3	705833		Relief, Strain	11	Appelez-nous	-
4	Y04100284		Module, Spark	11	Appelez-nous	-
5	708765		Screw	11	Appelez-nous	-
6	71002678		Tube, Burner (lf)	11	Appelez-nous	-
6	71002677		Tube, Burner (lr)	11	Appelez-nous	-
6	71002676		Tube, Burner (ctr)	11	Appelez-nous	-
6	71002679		Tube, Burner (rf)	11	Appelez-nous	-
6	71002675		Tube, Burner (rr)	11	Appelez-nous	-
7	71001697		Nut	11	Appelez-nous	-
8	71002555		Tube, Supply	11	Appelez-nous	-
9	74005032		Switch, Valve	11			$ 57.31
10	71002671		Valve, Burner (lgr)	11	Appelez-nous	-
10	71002673		Valve, Burner (smr)	11	Appelez-nous	-
10	71002672		Valve, Burner (sm)	11	Appelez-nous	-
11	71002674		Pipe, Manifold	11	Appelez-nous	-
12	W11106948		Regulator, Pressure   (Replaces: Y704545)	11		Immediately	$ 215.01
13	705829		Tape, Seal Silicone	11	Appelez-nous	-
14	Y705019		Screw	11	Appelez-nous	-
15	715910		Washer, Lock	11	Appelez-nous	-
16	WP90767		Screw   (Replaces: Y700502)	11		Immediately	$ 7.04
17	71001667		Support, Cross	11	Appelez-nous	-
18	71001088		Holder, Orifice (10.5k)	11	Appelez-nous	-
18	71001087		Holder, Orifice (6.5k)	11	Appelez-nous	-
18	71002863		Orifice (9.1k)	11	Appelez-nous	-
18	71001086		Holder, Orifice (12k)	11	Appelez-nous	-
18	71002448		Holder, Orifice (9.1)	11	Appelez-nous	-
18	71001091		Orifice (6.5k)	11	Appelez-nous	-
18	71001090		Orifice (10.5k)	11	Appelez-nous	-
18	71001089		Orifice (12k)	11	Appelez-nous	-
NI	71001739		Wire, Hv (29``)	11	Appelez-nous	-
NI	71001740		Wire Wht (25``)	11	Appelez-nous	-
NI	71001736		Wire, Hv (wht)	11	Appelez-nous	-
NI	71002376		Harness, Wire	11	Appelez-nous	-
NI	71001738		Wire, Wht (lr-27``)	11	Appelez-nous	-
NI	71001737		Wire, Wht (14``)	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
