SELECT A DIAGRAM

01 - Body


02 - Top Assembly


03 - Wiring Information

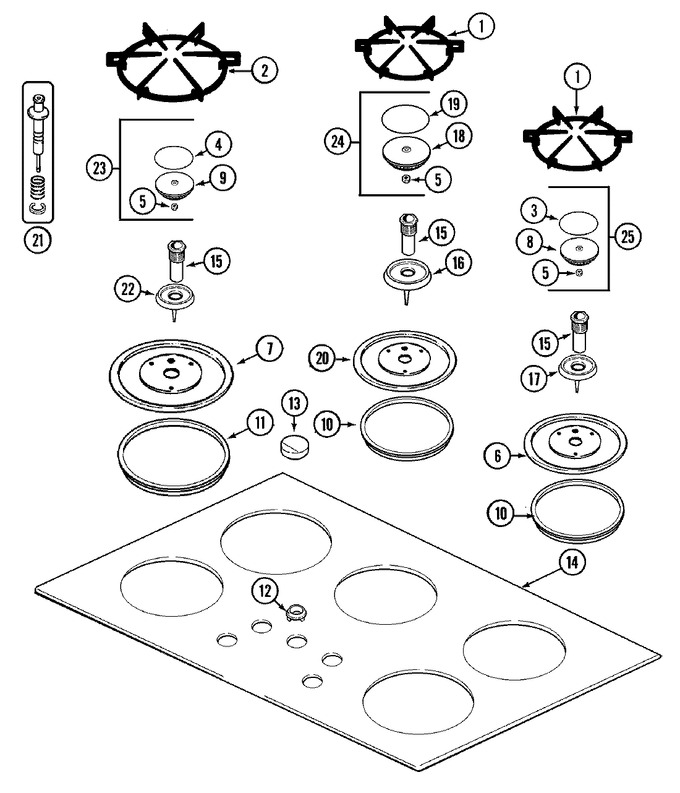

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001661		Grate (sm)	11	Appelez-nous	-
2	71001662		Grate (gry/lg)	11	Appelez-nous	-
3	71001663		Cap (rr-gry)	11	Appelez-nous	-
4	71001075		Cap (lg-gry)	11			$ 39.17
5	W10244602		Nut, M5   (Replaces: 71001092)	11			$ 11.90
6	71001685		Pan, Burner (sm/wht)	11	Appelez-nous	-
7	71001671		Pan, Burner (lg/wht)	11	Appelez-nous	-
8	71001664		Head, Burner (sm)	11	Appelez-nous	-
9	71001079		Head, Burner (lg)	11	Appelez-nous	-
10	WP71001669		Seal, Pan (sm & Simmer)   (Replaces: 71001669)	11			$ 91.07
11	71001670		Seal, Pan (lg)	11			$ 49.99
12	71001237		Seal, Ring----na	11	Appelez-nous	-
12	71002371		Grommet, Spill (gry)	11	Appelez-nous	-
13	71002373		Knob, Burner (wht)	11			$ 16.56
14	71002375		Glass, Cooktop (wht)	11	Appelez-nous	-
15	71001082		Venturi	11	Appelez-nous	-
16	71001080		Base, Burner (sm)	11	Appelez-nous	-
16	71001076		O-ring, Base (smr)	11	Appelez-nous	-
17	71001672		O-ring, Base (sm)	11	Appelez-nous	-
17	71001696		Base, Burner (sm)	11	Appelez-nous	-
18	71001078		Head, Burner (lf)	11	Appelez-nous	-
19	71001073		Cap (smr-gry)	11	Appelez-nous	-
20	71001687		Pan, Burner (smr/wht)	11	Appelez-nous	-
21	71001695		Clip, Igniter	11	Appelez-nous	-
21	71001694		Igniter	11	Appelez-nous	-
22	71001081		Base, Burner (lg)	11	Appelez-nous	-
22	71001077		O-ring, Base (lg)	11	Appelez-nous	-
23	71001070		Head, Burner Assy. (lg/gry)	11	Appelez-nous	-
24	71001067		Head, Burner Assy. (smr/gry)	11	Appelez-nous	-
25	71002586		Head, Burner Assy. (sm/gray)	11	Appelez-nous	-
NI	16000326		Guide, Quick Ref - Jenn-air	11	Appelez-nous	-
NI	71002377		Lp Orifice Kit (5 Burner)	11	Appelez-nous	-
NI	71002029		Manual, Use & Care	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
