SELECT A DIAGRAM

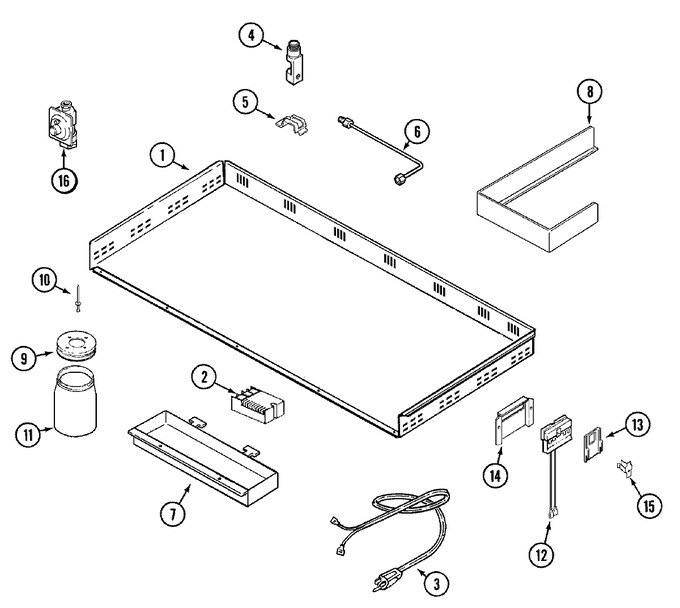

01 - Burner Box


02 - Control Panel


03 - Top Assembly


04 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71003168		Housing, Burner Box	10	Appelez-nous	-
2	WPW10475147		Module, Spark   (Replaces: 71002783)	10		Immediately	$ 214.42
2	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
3	71003145		Cord, Power	10	Appelez-nous	-
4	71002720		Holder W/orifice (6.5k)	10	Appelez-nous	-
4	71002722		Holder W/orifice (10k)	10	Appelez-nous	-
4	71002721		Holder W/orifice (9.1k)	10	Appelez-nous	-
4	71003150		Holder W/orifice (15k)	10	Appelez-nous	-
5	71003147		Bracket, Orifice Holder	10	Appelez-nous	-
5	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
6	71003148		Tube, Burner (ft)	10	Appelez-nous	-
6	71003149		Tube, Burner (rr)	10	Appelez-nous	-
7	Y04100254		Relief, Strain	10	Appelez-nous	-
7	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
7	71003146		Cover, Module	10	Appelez-nous	-
8	71003154		Support, Griddle----na	10	Appelez-nous	-
9	Y707870		Lid, Jar	10	Appelez-nous	-
10	WP210720		Rivet, Jar Lid   (Replaces: Y707128)	10			$ 12.14
11	WPY707869		Jar, Drain   (Replaces: Y707869)	10			$ 61.43
12	71003151		Block, Terminal	10	Appelez-nous	-
13	71003152		Spacer, Terminal Block	10	Appelez-nous	-
14	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
14	71003153		Cover, Terminal Block	10	Appelez-nous	-
15	WPW10068250		Screw   (Replaces: 706112)	10			$ 3.66
15	Y706064		Clip, Ground	10	Appelez-nous	-
16	W11106948		Regulator, Pressure   (Replaces: Y704545)	10		Immediately	$ 215.01

    View Diagram in Separate Window       Print Part List
