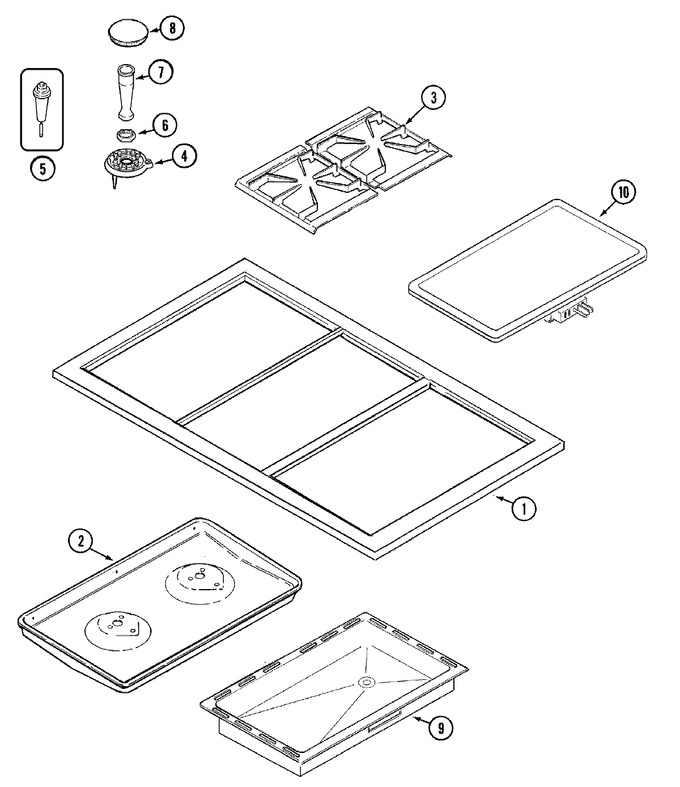

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71003125 | Top, Main (stnls) | 10 |
|
- | ||||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 71003155 | Pan, Burner (lg-blk) | 10 |
|
- | ||||
| 2 | 71003156 | Pan, Burner (sm-blk)----na | 10 |
|
- | ||||
| 3 | 71003158 | Grate, Burner (blk) | 10 |
|
- | ||||
| 4 | WP7540P028-60 | Base, Burner (smr) (Replaces: 71002784) | 10 |
|
$ 48.41 | ||||
| 4 | 71002744 | Base, Burner (sm) | 10 |
|
- | ||||
| 4 | 71002743 | Base, Burner (lg) | 10 |
|
- | ||||
| 5 | WP7432P109-60 | Igniter (Replaces: 71002724) | 10 |
|
$ 47.83 | ||||
| 6 | WP7103P178-60 | Nut, Mounting (Replaces: 71002746) | 10 |
|
$ 6.26 | ||||
| 7 | WP7538P003-60 | Venturi (Replaces: 71002747) | 10 |
|
$ 88.55 | ||||
| 8 | 71002738 | Cap, Burner (sm-blk) | 10 |
|
- | ||||
| 8 | 71002787 | Cap, Burner (smr-blk) | 10 |
|
- | ||||
| 8 | 71002740 | Cap, Burner (lg-blk) | 10 |
|
- | ||||
| 9 | 71003157 | Pan, Grill (blk) | 10 |
|
- | ||||
| 10 | 71003159 | Griddle | 10 |
|
- | ||||
| 10 | 71003215 | Receptacle | 10 |
|
- | ||||
| 10 | 71003151 | Block, Terminal | 10 |
|
- |
