SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

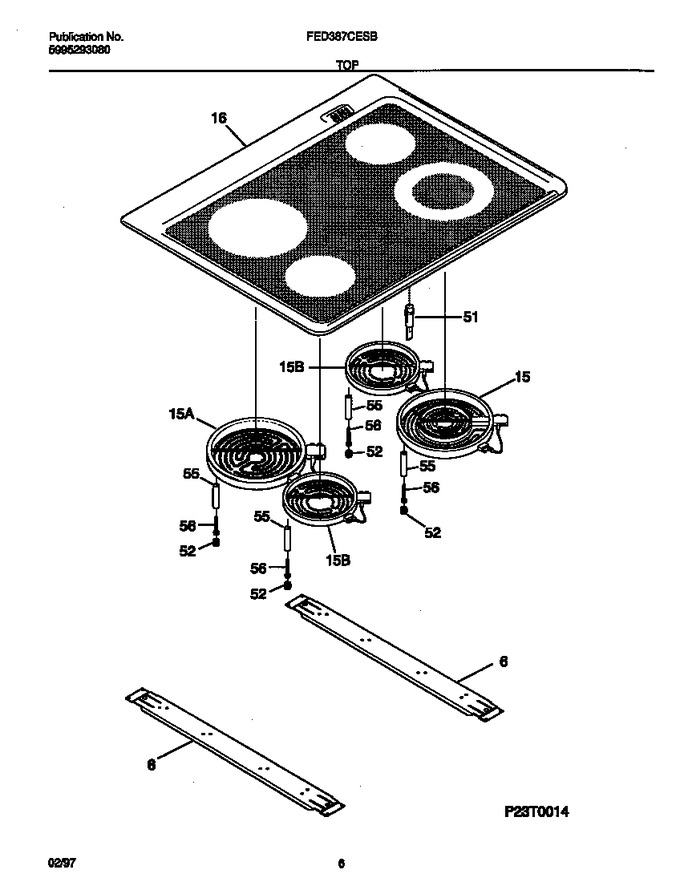

04 - Top


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303311190		Support-element		Appelez-nous	-
15	318050200		Element-surface, Dual Radiant, 1000w/2000w, Limit Sw Inc		Appelez-nous	-
15	318198817		Element-surface,small/6 Inch ,1200w ,limit Sw Incl   (Replaces: 318050100)			Immediately	$ 192.78
15	5303297143		Element-surface, Halogen, Large/8 Inch, Limit Sw Incl		Appelez-nous	-
15	5303297142		Element-surface, Halogen, Small/6 Inch, Limit Sw Incl		Appelez-nous	-
16	318079500		Main Top, Glass, White		Appelez-nous	-
51	5303297484		Light-indicator, Hot Surface, (4)		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
*36176	5303300414		Spacer, Cork & Rubber				$ 13.18

    View Diagram in Separate Window       Print Part List
