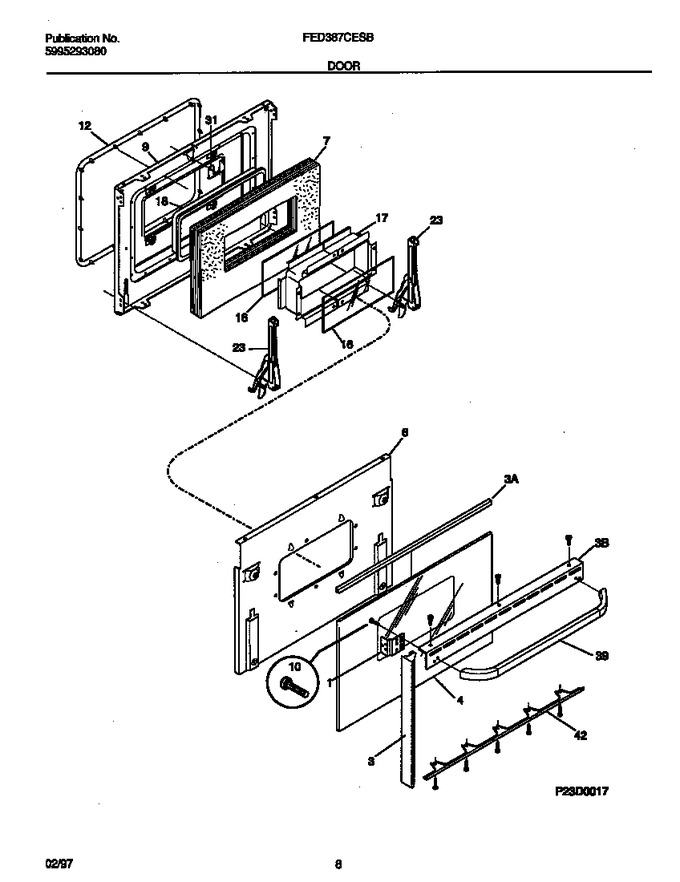

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim, Handle, (2)				$ 52.87
3	5303311194		Trim,oven Door ,white ,lower		Appelez-nous	-
3	318049206		Trim-oven Door, White, Side, (2)		Appelez-nous	-
3	318028900		Trim-oven Door				$ 34.82
4	318041102		Glass-oven Door, White, Outer				$ 227.48
6	318056810		Shield-wool		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048802		Liner-oven Door		Appelez-nous	-
10	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
23	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
23	5303311215		Hinge-oven Door, Assy		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	318014301		Spacer-handle, White, (2) (not Illustrated)				$ 48.88
39	5303300414		Spacer, Cork & Rubber (not Illustrated)				$ 13.18
39	316091119		Handle-door, White, Oven		Appelez-nous	-
42	318049020		Trim-oven Door, White, Upper				$ 156.82
*36177	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*36178	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*36179	5303311156		Bumper-door, Cork & Rubber		Appelez-nous	-
*36180	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*36181	316021109		Screw, 8-18 X 1/2, White, (4)   (Replaces: 5303317175)			Immediately	$ 27.50
*36182	5308007939		Plug, Door Liner		Appelez-nous	-
