SELECT A DIAGRAM

01 - Body


02 - Top Assy.

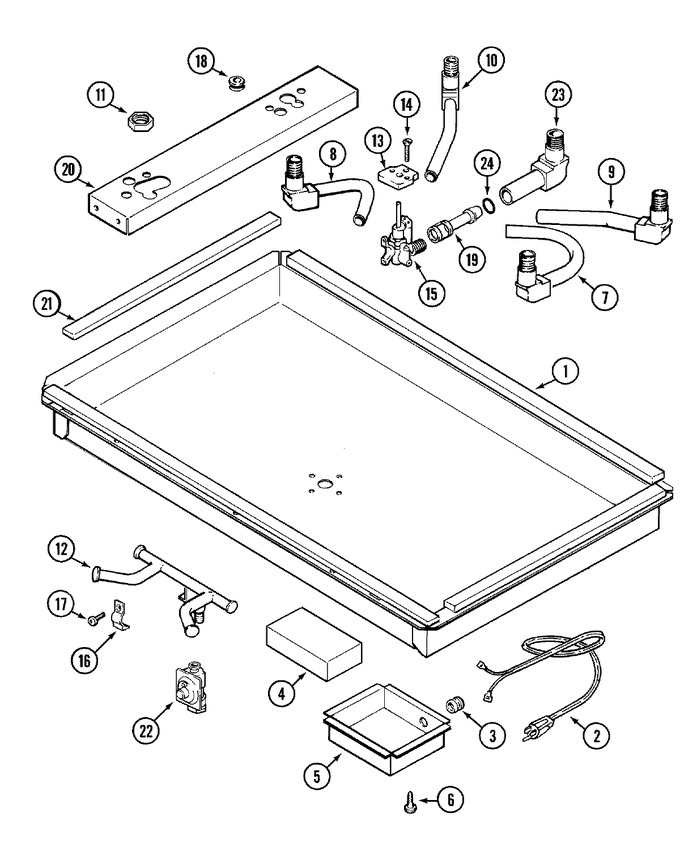

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	04100310		Box, Burner	11	Appelez-nous	-
2	Y04100288		Harness, Switch	11	Appelez-nous	-
2	Y705805		Cord, Power	11	Appelez-nous	-
3	705833		Relief, Strain	11	Appelez-nous	-
4	Y04100284		Module, Spark	11	Appelez-nous	-
5	04100285		Box, Spark Module	11	Appelez-nous	-
6	WPW10253196		Screw   (Replaces: Y707113)	11			$ 3.76
7	Y705815		Tube, Burner (rf)	11	Appelez-nous	-
8	04100318		Tube, Burner (lf)	11	Appelez-nous	-
9	04100282		Tube, Burner (rr)	11	Appelez-nous	-
10	Y04100319		Tube, Burner (lr)	11	Appelez-nous	-
11	705818		Nut, Burner Tube (sm/lg)	11	Appelez-nous	-
11	04100376		Nut, Burner Tube (smr)	11	Appelez-nous	-
12	71001588		Manifold Pipe Assy.	11	Appelez-nous	-
13	Y705861		Switch, Valve	11			$ 56.09
14	Y705862		Screw, Switch	11	Appelez-nous	-
15	Y04100735		Valve, (left Front)	11	Appelez-nous	-
15	04100720		Valve, (right Front)	11	Appelez-nous	-
15	705858		Seal, Valve	11	Appelez-nous	-
15	Y04100732		Valve, (right Rear)	11	Appelez-nous	-
15	04100734		Valve, (left Rear)	11	Appelez-nous	-
15	04100733		Valve, (center)	11	Appelez-nous	-
16	705859		Bracket, Valve	11	Appelez-nous	-
17	705860		Screw, Valve	11	Appelez-nous	-
18	705831		Grommet, Insulator	11	Appelez-nous	-
19	Y705822		Air Mixer (sm)	11	Appelez-nous	-
19	705830		Air Mixer (lg)	11	Appelez-nous	-
20	04100286		Support, Tube	11	Appelez-nous	-
20	715910		Washer, Lock	11	Appelez-nous	-
21	705829		Tape, Seal Silicone	11	Appelez-nous	-
22	04100707		Regulator, Pressure	11	Appelez-nous	-
23	Y04100320		Tube, Burner (ctr)	11	Appelez-nous	-
24	Y705879		0-ring (mixer)	11	Appelez-nous	-
NI	Y04100378		Wire, Orange (18``)	11	Appelez-nous	-
NI	04100377		Wire, High Voltage (yellow)	11	Appelez-nous	-
NI	04100379		Wire, Violet	11	Appelez-nous	-
NI	04100380		Wire, Brown	11	Appelez-nous	-
NI	04100381		Wire, Blue	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
