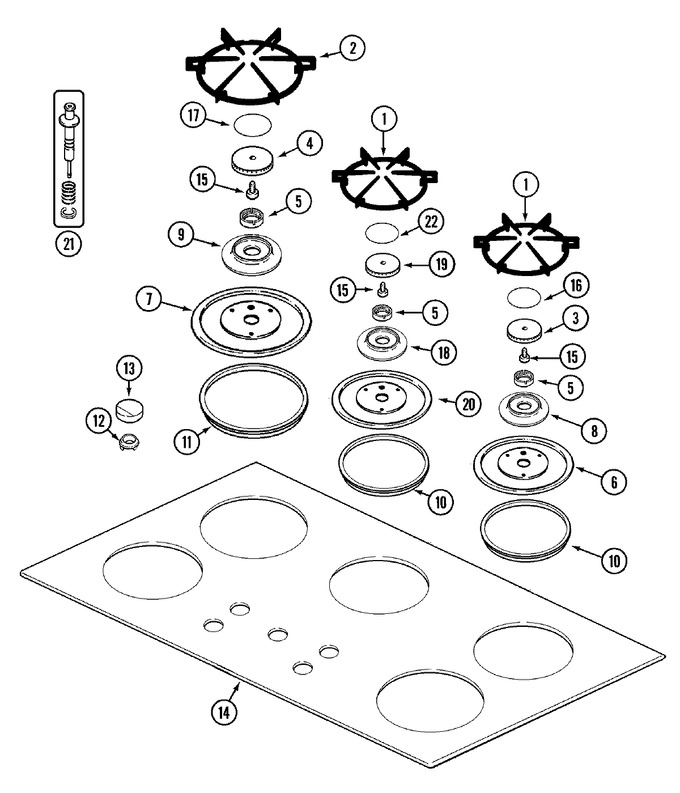

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001397 | Grate, Burner (sm-blk) | 14 |
|
- | ||||
| 1 | Y705806 | Grate (sm-blk) | 11 |
|
- | ||||
| 2 | 71001396 | Grate, Burner (lg-blk) | 14 |
|
- | ||||
| 2 | Y705807 | Grate (lg-blk) | 11 |
|
- | ||||
| 3 | 705871 | Cap, Burner (sm) | 11 |
|
- | ||||
| 4 | Y705874 | Cap, Burner (lg) | 11 |
|
- | ||||
| 5 | Y705817 | Nut, Burner (sm/lg) | 11 |
|
- | ||||
| 5 | Y04100374 | Nut, Burner (smr) | 11 |
|
- | ||||
| 6 | 705808 | Pan (sm-blk) | 11 |
|
- | ||||
| 7 | Y705809 | Pan (lg-blk) | 11 |
|
- | ||||
| 8 | Y04100083 | Base, Burner (sm-blk) | 11 |
|
$ 57.44 | ||||
| 8 | Y705820 | O-ring, Burner Head (sm) | 11 |
|
- | ||||
| 9 | Y705821 | O-ring, Burner Head (lg) | 11 |
|
- | ||||
| 9 | 04100082 | Base, Burner (lg-blk)----na | 11 |
|
- | ||||
| 10 | Y705827 | Seal, Pan (sm) | 11 |
|
- | ||||
| 11 | 705828 | Seal, Pan (lg) | 11 |
|
- | ||||
| 12 | 71001237 | Seal, Ring----na | 13 |
|
- | ||||
| 12 | Y04100306 | Grommet (blk) | 11 |
|
- | ||||
| 13 | 705800 | Knob (blk) | 11 |
|
- | ||||
| 14 | 04100308 | Glass, Cooktop (blk) | 11 |
|
- | ||||
| 15 | Y705873 | Bolt, Cover | 11 |
|
- | ||||
| 16 | 705872 | Cap, Burner (sm-blk) | 11 |
|
- | ||||
| 17 | Y705875 | Cap, Burner (lg-blk) | 11 |
|
- | ||||
| 18 | Y04100315 | Base, Burner (smr-blk) | 11 |
|
- | ||||
| 18 | 04100283 | O-ring, Burner Head (smr) | 11 |
|
- | ||||
| 19 | Y04100300 | Burner Head Assy. (smr-blk) | 11 |
|
- | ||||
| 20 | 04100313 | Pan (smr-blk) | 11 |
|
- | ||||
| 21 | 12001046 | Kit, Burner Igniter (smr) | 11 |
|
- | ||||
| 21 | 12200025 | Kit, Burner Ignitor (sm/lg) | 11 |
|
$ 36.81 | ||||
| 22 | 04100622 | Cap, Burner (smr-blk) | 11 |
|
- |
