SELECT A DIAGRAM

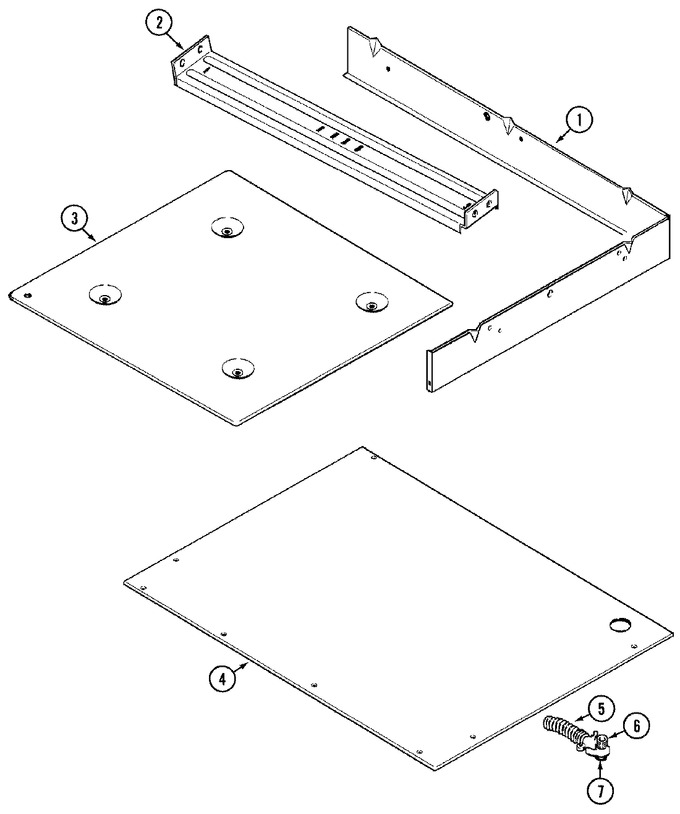

01 - Burner Box
02 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4016F023-45 | Bottom, Burner Box-sides | 1 |
|
- | ||||
| 2 | 3807F326-80 | Support, Ceramic Element | 1 |
|
- | ||||
| 3 | 3601F173-51 | Baffle, Heat----na | 1 |
|
- | ||||
| 4 | 4011F136-45 | Bottom, Burner Box | 1 |
|
- | ||||
| 5 | 3414F035-44 | Tubing, Conduit (flexible) | 1 |
|
- | ||||
| 6 | 8018P001-60 | Sleeve, Tube | 1 |
|
- | ||||
| 7 | 7417P004-60 | Connector, Right Ang | 1 |
|
- |
