01 - Burner Box
02 - Top Assembly
New Model Search:

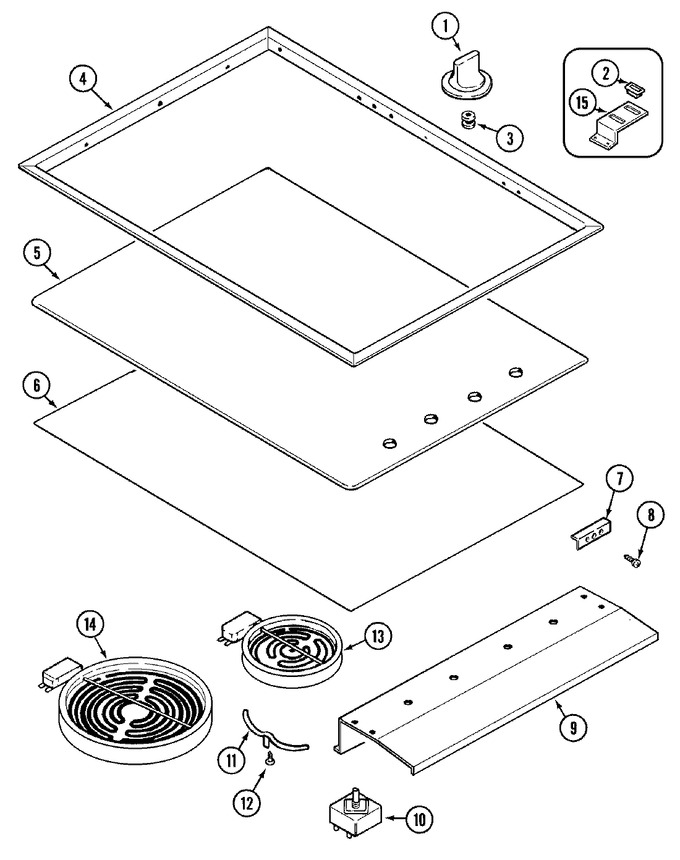

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7711P358-60 | Knob, Infinite Switch | 1 |
|
- | ||||
| 2 | 7407P098-60 | Light, Indicator | 1 |
|
- | ||||
| 3 | 8008P033-60 | Grommet | 1 |
|
- | ||||
| 4 | 7746P023-60 | Frame, Main Top | 1 |
|
- | ||||
| 4 | 4870F012-60 | Tape, Foam (1/2``x102``) | 1 |
|
- | ||||
| 5 | 4870F006-60 | +tape, Silicone 1 In. By 102 I | 1 |
|
$ 37.74 | ||||
| 5 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 1 |
|
Immediately | $ 9.95 | |||
| 5 | 7918P022-60 | Glass, Main Top | 1 |
|
- | ||||
| 5 | 7918P048-60 | Top, Main (glass-blk) | 3 |
|
- | ||||
| 6 | 3601F164-80 | Baffle, Ceramic Top | 1 |
|
- | ||||
| 7 | 3804F092-45 | Retainer, Main Top Glass | 1 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 1 |
|
Immediately | $ 6.85 | |||
| 9 | 3605F143-45 | Plate, Switch Mounting | 1 |
|
- | ||||
| 10 | 7403P211-60 | Switch, Inf. Control | 1 |
|
- | ||||
| 11 | 8004P015-60 | Support, Element | 1 |
|
- | ||||
| 12 | WP74004005 | Screw (Replaces: 7101P042-60) | 1 |
|
$ 6.95 | ||||
| 13 | Y04000062 | Limiter 6`` | 1 |
|
- | ||||
| 13 | Y04000064 | Limiter (6`` Element) | 2 |
|
- | ||||
| 13 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 2 |
|
Immediately | $ 309.01 | |||
| 13 | W10823704 | Element, Std (Replaces: 7406P058-60) | 1 |
|
Immediately | $ 309.01 | |||
| 14 | Y04000063 | Limiter (8`` Element) | 2 |
|
- | ||||
| 14 | W10823707 | Element, Giant (Replaces: 7406P057-60) | 1 |
|
Immediately | $ 316.13 | |||
| 14 | Y04000061 | Limiter 8`` | 1 |
|
- | ||||
| 14 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 2 |
|
Immediately | $ 316.13 | |||
| 15 | 3801F188-45 | Bracket, Light Indicator | 1 |
|
- | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
