SELECT A DIAGRAM

01 - Cover

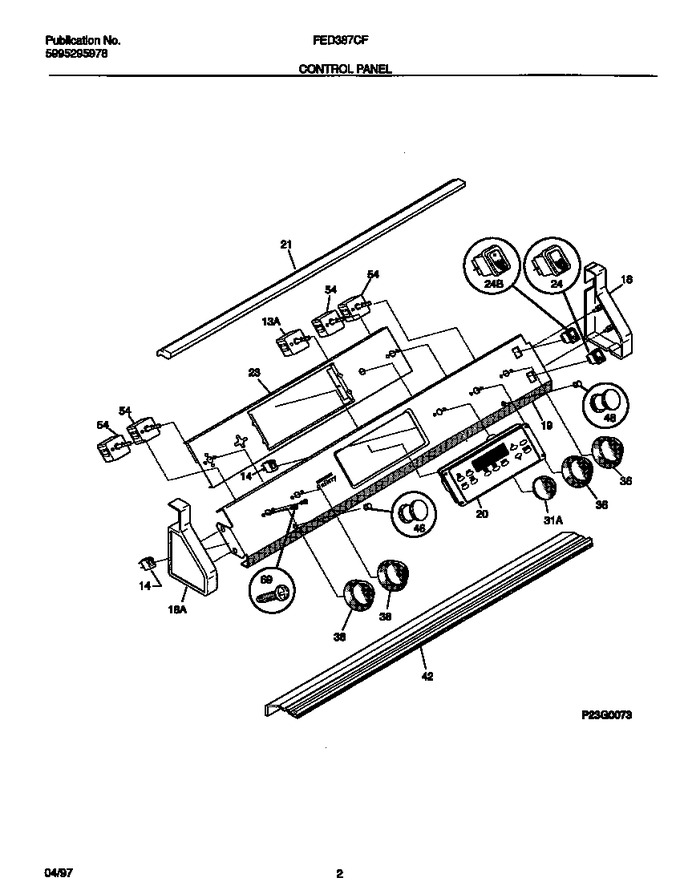

02 - Control Panel


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304508926		Switch-warmer, Infinite, (2)   (Replaces: 316095500)			Immediately	$ 84.18
14	5303051533		Light/lamp, Indicator, 125v, (2)				$ 53.81
18	5303304671		End Cap, White, Lh		Appelez-nous	-
18	5303304668		End Cap, White, Rh		Appelez-nous	-
19	318005550		Panel-control		Appelez-nous	-
20	5303311124		Screw, Control, (4) (not Illustrated)		Appelez-nous	-
20	318012901		Clock/timer, Eoc, White, W/overlay		Appelez-nous	-
21	318027801		Trim-backguard, Top		Appelez-nous	-
23	318015503		Bracket-clock Mtg		Appelez-nous	-
24	5303304692		Plate, Backup, Light Switch		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
24	316083100		Switch-rocker, White, Dual Element, (1)   (Replaces: 316076301)				$ 89.31
31	316095601		Knob-warmer, White, (2)				$ 23.78
36	318016300		Knob-surface Unit, White, (4)		Appelez-nous	-
42	318106901		Trim-vent, White		Appelez-nous	-
46	5308006417		Lens-light/lamp, Indicator, Red, (2)				$ 19.06
54	318120501		Switch-surface Unit, (4)				$ 244.13
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
*66600	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*66601	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
